Name: TB6549FG(O,EL)
Brand: Toshiba Semiconductor and Storage
SKU: TB6549FG(O,EL)
Availability: InStock

REF: TB6549FG(O,EL) Toshiba Semiconductor and Storage

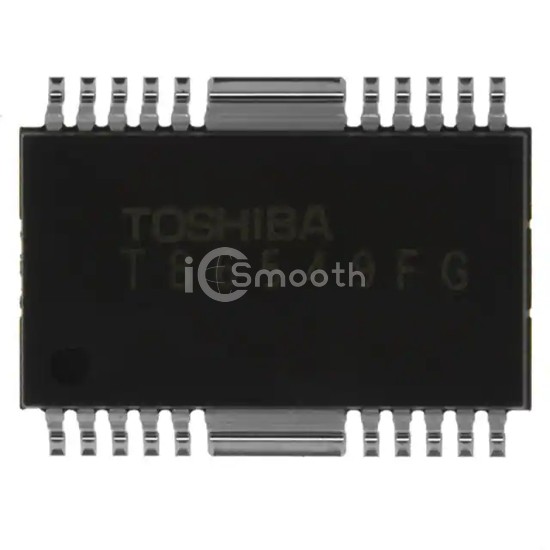

TB6549FG(O,EL)

IC MOTOR DRIVER 10V-27V 20HSOP

TB6549FG(O,EL) is a PMIC - Motor Drivers, Controllers manufactured by Toshiba Semiconductor and Storage. IC MOTOR DRIVER 10V-27V 20HSOP. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 85°C (TA), voltage - supply 10V ~ 27V, package / case 20-BSOP (0.346", 8.80mm Width) + 2 Heat Tabs.

Datasheet Request a Quote

In Stock: 7,909

Specifications

16 parameters

Product Status	Active
Motor Type - Stepper	-
Motor Type - AC, DC	Brushed DC
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (2)
Interface	PWM, Serial
Technology	Bi-CMOS
Step Resolution	-

Applications	General Purpose
Current - Output	3.5A
Voltage - Supply	10V ~ 27V
Voltage - Load	10V ~ 27V
Operating Temperature	-20°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	20-BSOP (0.346", 8.80mm Width) + 2 Heat Tabs
Supplier Device Package	20-HSOP
