Name: TB62214AFNG,C8,EL
Brand: Toshiba Semiconductor and Storage
SKU: TB62214AFNG,C8,EL
Price: 2.49 USD
Availability: InStock

REF: TB62214AFNG,C8,EL Toshiba Semiconductor and Storage

TB62214AFNG,C8,EL

Toshiba Semiconductor and Storage

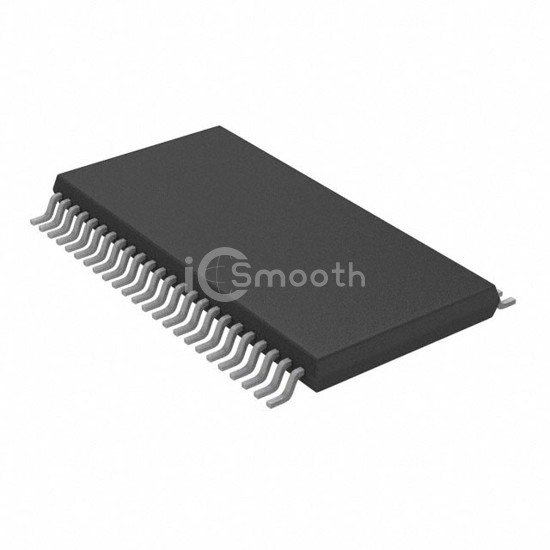

IC MOTOR DRIVER BIPOLAR 48HTSSOP

TB62214AFNG,C8,EL is a PMIC - Motor Drivers, Controllers manufactured by Toshiba Semiconductor and Storage. IC MOTOR DRIVER BIPOLAR 48HTSSOP. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 150°C (TJ), voltage - supply 4.75V ~ 5.25V, package / case 48-TFSOP (0.240", 6.10mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 3,032

Tiered Pricing USD

1+ $2.4900 —

10+ $1.8510 -26%

25+ $1.6916 -32%

100+ $1.5159 -39%

250+ $1.4321 -42%

500+ $1.3816 -45% BEST

Specifications

16 parameters

Product Status	Active
Motor Type - Stepper	Bipolar
Motor Type - AC, DC	-
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (4)
Interface	Parallel
Technology	DMOS
Step Resolution	1, 1/2, 1/4

Applications	General Purpose
Current - Output	2A
Voltage - Supply	4.75V ~ 5.25V
Voltage - Load	10V ~ 38V
Operating Temperature	-20°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	48-TFSOP (0.240", 6.10mm Width) Exposed Pad
Supplier Device Package	48-HTSSOP
