Name: TB62206FG,EL
Brand: Toshiba Semiconductor and Storage
SKU: TB62206FG,EL
Availability: InStock

REF: TB62206FG,EL Toshiba Semiconductor and Storage

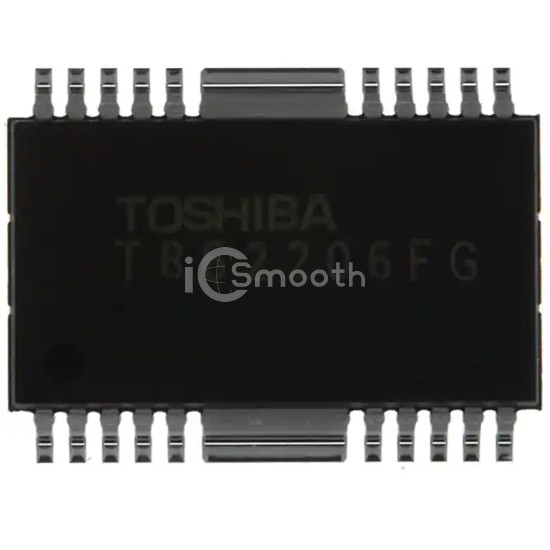

TB62206FG,EL

IC MTR DRV BIPLR 4.5-5.5V 20HSOP

TB62206FG,EL is a PMIC - Motor Drivers, Controllers manufactured by Toshiba Semiconductor and Storage. IC MTR DRV BIPLR 4.5-5.5V 20HSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 5.5V, package / case 20-BSOP (0.346", 8.80mm Width) + 2 Heat Tabs.

Datasheet Request a Quote

In Stock: 4,496

Specifications

16 parameters

Product Status	Obsolete
Motor Type - Stepper	Bipolar
Motor Type - AC, DC	-
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (4)
Interface	Parallel
Technology	DMOS
Step Resolution	1, 1/2

Applications	General Purpose
Current - Output	1.5A
Voltage - Supply	4.5V ~ 5.5V
Voltage - Load	13V ~ 35V
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	20-BSOP (0.346", 8.80mm Width) + 2 Heat Tabs
Supplier Device Package	20-HSOP
