Name: TA7291FG(O,EL)
Brand: Toshiba Semiconductor and Storage
SKU: TA7291FG(O,EL)
Availability: InStock

REF: TA7291FG(O,EL) Toshiba Semiconductor and Storage

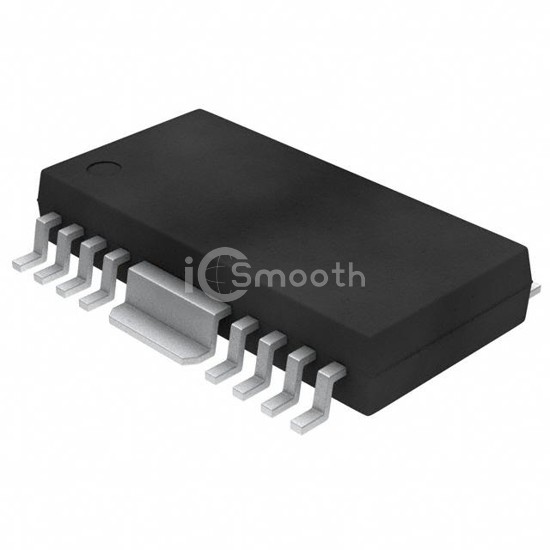

TA7291FG(O,EL)

IC MOTOR DRIVER 4.5V-20V 16HSOP

TA7291FG(O,EL) is a PMIC - Motor Drivers, Controllers manufactured by Toshiba Semiconductor and Storage. IC MOTOR DRIVER 4.5V-20V 16HSOP. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 75°C (TA), voltage - supply 4.5V ~ 20V, package / case 16-BSOP (0.252", 6.40mm Width) + 2 Heat Tabs.

Datasheet Request a Quote

In Stock: 1,395

Specifications

16 parameters

Product Status	Active
Motor Type - Stepper	-
Motor Type - AC, DC	Brushed DC
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (2)
Interface	Parallel
Technology	Bipolar
Step Resolution	-

Applications	General Purpose
Current - Output	400mA
Voltage - Supply	4.5V ~ 20V
Voltage - Load	0V ~ 20V
Operating Temperature	-30°C ~ 75°C (TA)
Mounting Type	Surface Mount
Package / Case	16-BSOP (0.252", 6.40mm Width) + 2 Heat Tabs
Supplier Device Package	16-HSOP
