Name: RN2305,LXHF
Brand: Toshiba Semiconductor and Storage
SKU: RN2305,LXHF
Price: 0.40 USD
Availability: InStock

REF: RN2305,LXHF Toshiba Semiconductor and Storage

RN2305,LXHF

Toshiba Semiconductor and Storage

AUTO AEC-Q TR PNP BRT, Q1BSR=2.2

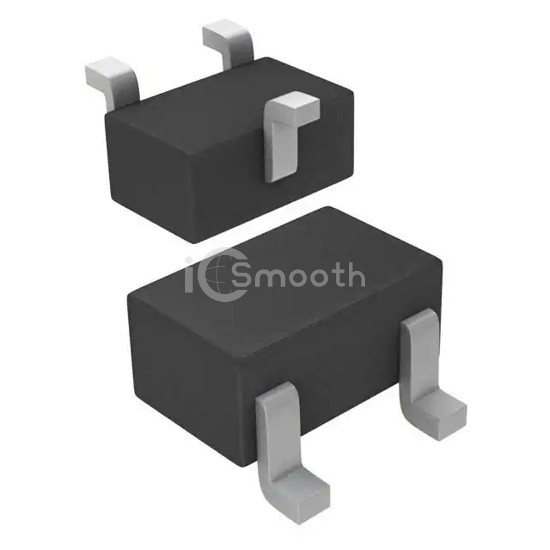

RN2305,LXHF is a Transistors - Bipolar (BJT) - Single, Pre-Biased manufactured by Toshiba Semiconductor and Storage. AUTO AEC-Q TR PNP BRT, Q1BSR=2.2. Key specifications: mounting type Surface Mount, package / case SC-70, SOT-323, current - collector (ic) (max) 100 mA, power - max 100 mW.

Request a Quote

In Stock: 5,585

Specifications

14 parameters

Product Status	Active
Transistor Type	PNP - Pre-Biased
Current - Collector (Ic) (Max)	100 mA
Voltage - Collector Emitter Breakdown (Max)	50 V
Resistor - Base (R1)	2.2 kOhms
Resistor - Emitter Base (R2)	47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce	80 @ 10mA, 5V

Vce Saturation (Max) @ Ib, Ic	300mV @ 250µA, 5mA
Current - Collector Cutoff (Max)	500nA
Frequency - Transition	200 MHz
Power - Max	100 mW
Mounting Type	Surface Mount
Package / Case	SC-70, SOT-323
Supplier Device Package	SC-70
