Name: RN1315,LF
Brand: Toshiba Semiconductor and Storage
SKU: RN1315,LF
Price: 0.04 USD
Availability: InStock

REF: RN1315,LF Toshiba Semiconductor and Storage

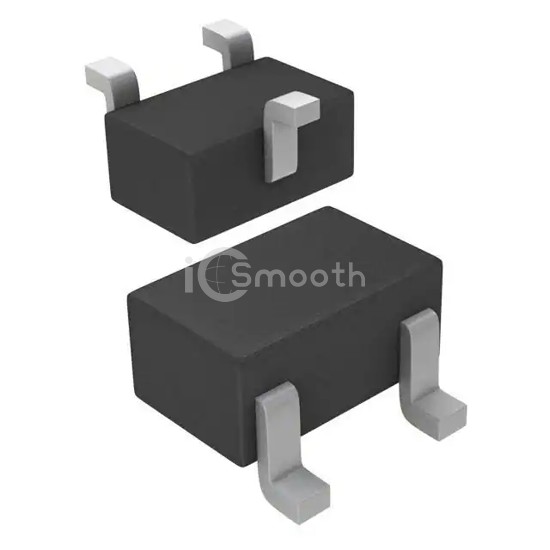

RN1315,LF

Toshiba Semiconductor and Storage

TRANS PREBIAS NPN 50V 0.1A USM

RN1315,LF is a Transistors - Bipolar (BJT) - Single, Pre-Biased manufactured by Toshiba Semiconductor and Storage. TRANS PREBIAS NPN 50V 0.1A USM. Key specifications: mounting type Surface Mount, package / case SC-70, SOT-323, current - collector (ic) (max) 100 mA, power - max 100 mW.

Datasheet Request a Quote

In Stock: 2,570

Specifications

14 parameters

Product Status	Active
Transistor Type	NPN - Pre-Biased
Current - Collector (Ic) (Max)	100 mA
Voltage - Collector Emitter Breakdown (Max)	50 V
Resistor - Base (R1)	2.2 kOhms
Resistor - Emitter Base (R2)	10 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce	50 @ 10mA, 5V

Vce Saturation (Max) @ Ib, Ic	300mV @ 250µA, 5mA
Current - Collector Cutoff (Max)	500nA
Frequency - Transition	250 MHz
Power - Max	100 mW
Mounting Type	Surface Mount
Package / Case	SC-70, SOT-323
Supplier Device Package	SC-70
