HN2D01FU(TE85L,F)

In Stock: 8,072

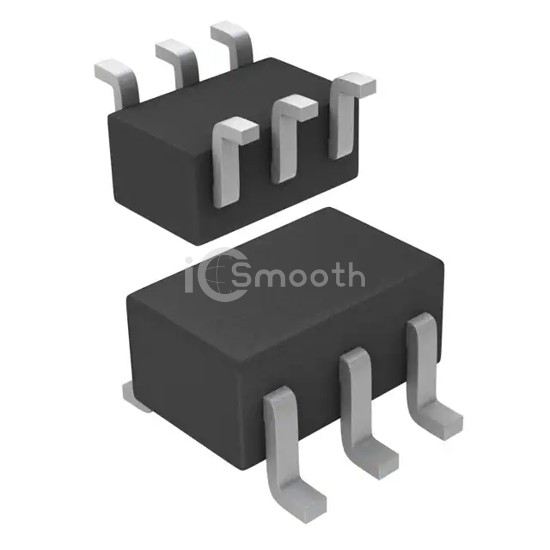

HN2D01FU(TE85L,F) - Toshiba Semiconductor and Storage - Diodes - Rectifiers - Arrays
REF: HN2D01FU(TE85L,F) Toshiba Semiconductor and Storage
HN2D01FU(TE85L,F)

Toshiba Semiconductor and Storage

DIODE ARRAY GP 80V 80MA US6

HN2D01FU(TE85L,F) is a Diodes - Rectifiers - Arrays manufactured by Toshiba Semiconductor and Storage. DIODE ARRAY GP 80V 80MA US6. Key specifications: mounting type Surface Mount, package / case 6-TSSOP, SC-88, SOT-363.

Datasheet Request a Quote

In Stock: 8,072

Specifications

13 parameters
Product StatusActive
Diode Configuration3 Independent
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)80 V
Current - Average Rectified (Io) (per Diode)80mA
Voltage - Forward (Vf) (Max) @ If1.2 V @ 100 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)4 ns
Current - Reverse Leakage @ Vr500 nA @ 80 V
Operating Temperature - Junction125°C (Max)
Mounting TypeSurface Mount
Package / Case6-TSSOP, SC-88, SOT-363
Supplier Device PackageUS6
