Name: 4N30(SHORT,F)
Brand: Toshiba Semiconductor and Storage
SKU: 4N30(SHORT,F)
Availability: InStock

REF: 4N30(SHORT,F) Toshiba Semiconductor and Storage

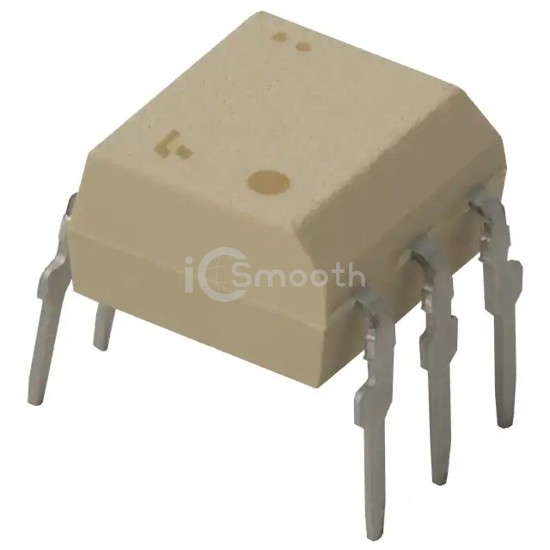

4N30(SHORT,F)

OPTOCOUPLER TRANS

4N30(SHORT,F) is a Optoisolators - Transistor, Photovoltaic Output manufactured by Toshiba Semiconductor and Storage. OPTOCOUPLER TRANS. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.15V, package / case 6-DIP (0.300", 7.62mm).

Request a Quote

In Stock: 1,220

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	2500Vrms
Current Transfer Ratio (Min)	-
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	5µs, 40µs (Max)
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Darlington with Base

Voltage - Output (Max)	30V
Current - Output / Channel	100mA
Voltage - Forward (Vf) (Typ)	1.15V
Current - DC Forward (If) (Max)	80 mA
Vce Saturation (Max)	1V
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
