Name: UCD7231RTJR
Brand: Texas Instruments
SKU: UCD7231RTJR
Price: 0.96 USD
Availability: InStock

REF: UCD7231RTJR Texas Instruments

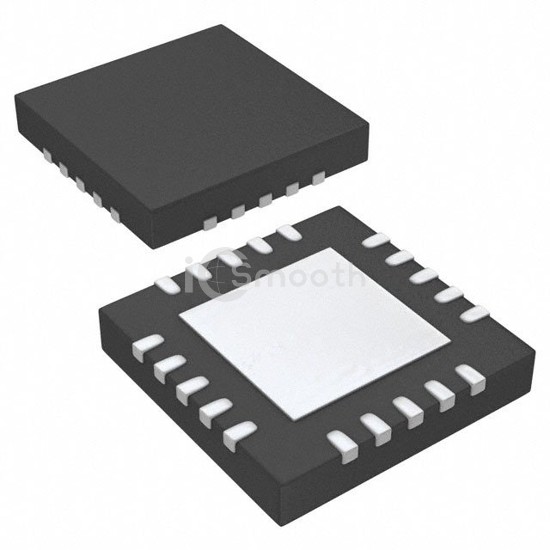

UCD7231RTJR

IC REG CTRLR BUCK 20QFN

UCD7231RTJR is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR BUCK 20QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4.7V ~ 15V, package / case 20-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 9,959

Tiered Pricing USD

3,000+ $0.9634 —

6,000+ $0.9436 -2%

9,000+ $0.9337 -3% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	4.7V ~ 15V
Frequency - Switching	Up to 2MHz

Duty Cycle (Max)	-
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Current Limit
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	20-WFQFN Exposed Pad
Supplier Device Package	20-QFN (4x4)
