UCD7138DRSR

In Stock: 3,761

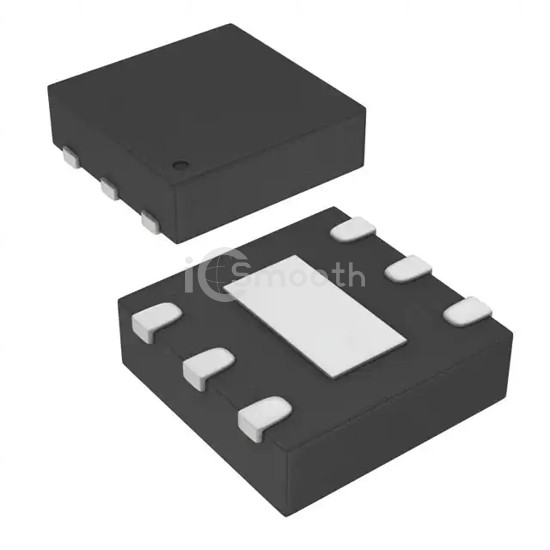

UCD7138DRSR - Texas Instruments - PMIC - Gate Drivers
REF: UCD7138DRSR Texas Instruments
UCD7138DRSR

Texas Instruments

IC GATE DRVR LOW-SIDE 6SON

UCD7138DRSR is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR LOW-SIDE 6SON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.5V ~ 18V, package / case 6-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,761

Specifications

15 parameters
Product StatusActive
Driven ConfigurationLow-Side
Channel TypeSingle
Number of Drivers1
Gate TypeN-Channel MOSFET
Voltage - Supply4.5V ~ 18V
Logic Voltage - VIL, VIH1.08V, 1.93V
Current - Peak Output (Source, Sink)4A, 6A
Input TypeInverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)4ns, 3.5ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case6-WDFN Exposed Pad
Supplier Device Package6-SON (3x3)
