UCC5870QDWJRQ1

In Stock: 7,516

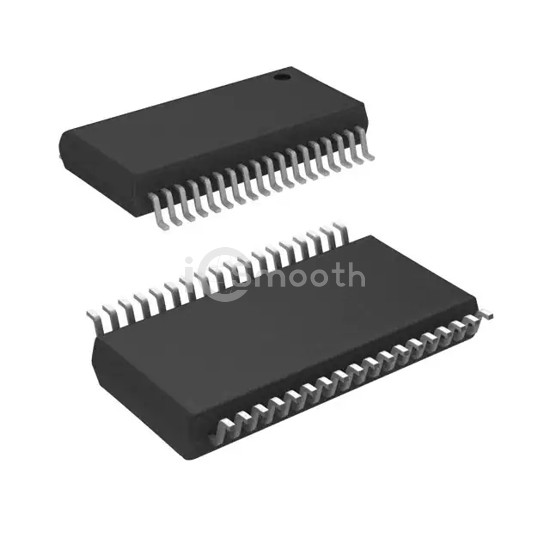

UCC5870QDWJRQ1 - Texas Instruments - PMIC - Gate Drivers
REF: UCC5870QDWJRQ1 Texas Instruments
UCC5870QDWJRQ1

Texas Instruments

AUTOMOTIVE, FUNCTIONAL SAFETY CO

UCC5870QDWJRQ1 is a PMIC - Gate Drivers manufactured by Texas Instruments. AUTOMOTIVE, FUNCTIONAL SAFETY CO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 3V ~ 5.5V, 15V ~ 30V, package / case 36-BSSOP (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 7,516

Tiered Pricing USD
1+ $16.1400 —
10+ $12.7910 -21%
25+ $11.9544 -26%
100+ $11.0354 -32%
250+ $10.5972 -34% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationFull-Bridge
Channel TypeSingle
Number of Drivers1
Gate TypeIGBT, SiC MOSFET
Voltage - Supply3V ~ 5.5V, 15V ~ 30V
Logic Voltage - VIL, VIH1.5V, 3V
Current - Peak Output (Source, Sink)15A, 15A
Input TypeInverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)150ns, 150ns
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case36-BSSOP (0.295", 7.50mm Width)
Supplier Device Package36-SSOP
