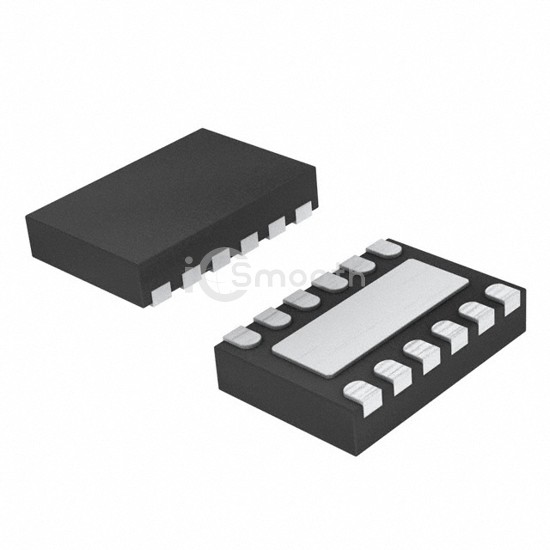

Name: UCC28231DRNT
Brand: Texas Instruments
SKU: UCC28231DRNT
Price: 1.92 USD
Availability: InStock

REF: UCC28231DRNT Texas Instruments

UCC28231DRNT

IC REG CTRLR MULT TOP 12USON

UCC28231DRNT is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR MULT TOP 12USON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 7V ~ 17V, package / case 12-UFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,990

Tiered Pricing USD

250+ $1.9194 —

500+ $1.8550 -3%

750+ $1.8227 -5%

1,250+ $1.7870 -7%

1,750+ $1.7661 -8%

2,500+ $1.7460 -9% BEST

Specifications

18 parameters

Product Status	Obsolete
Output Type	Transistor Driver
Function	Step-Up/Step-Down
Output Configuration	Positive
Topology	Full-Bridge, Half-Bridge, Push-Pull
Number of Outputs	4
Output Phases	1
Voltage - Supply (Vcc/Vdd)	7V ~ 17V
Frequency - Switching	100kHz ~ 550kHz

Duty Cycle (Max)	-
Synchronous Rectifier	No
Clock Sync	No
Serial Interfaces	-
Control Features	Frequency Control, Soft Start
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	12-UFDFN Exposed Pad
Supplier Device Package	12-USON (3x2)
