UCC28231DRNR

In Stock: 15,000

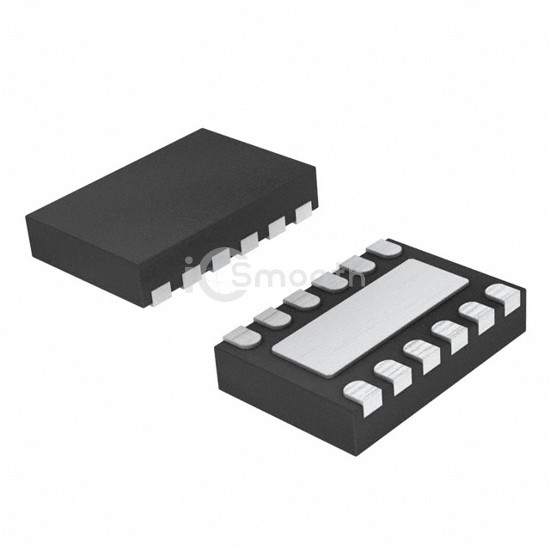

UCC28231DRNR - Texas Instruments - PMIC - Voltage Regulators - DC DC Switching Controllers
REF: UCC28231DRNR Texas Instruments
UCC28231DRNR

Texas Instruments

IC REG CTRLR MULT TOP 12-SON

UCC28231DRNR is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR MULT TOP 12-SON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 7V ~ 17V, package / case 12-UFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 15,000

Tiered Pricing USD
3,000+ $1.5149 —
6,000+ $1.4862 -2% BEST

Specifications

18 parameters
Product StatusObsolete
Output TypeTransistor Driver
FunctionStep-Up/Step-Down
Output ConfigurationPositive
TopologyFull-Bridge, Half-Bridge, Push-Pull
Number of Outputs4
Output Phases1
Voltage - Supply (Vcc/Vdd)7V ~ 17V
Frequency - Switching100kHz ~ 550kHz
Duty Cycle (Max)-
Synchronous RectifierNo
Clock SyncNo
Serial Interfaces-
Control FeaturesFrequency Control, Soft Start
Operating Temperature-55°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case12-UFDFN Exposed Pad
Supplier Device Package12-USON (3x2)
