UCC27512MDRSTEP

In Stock: 8,020

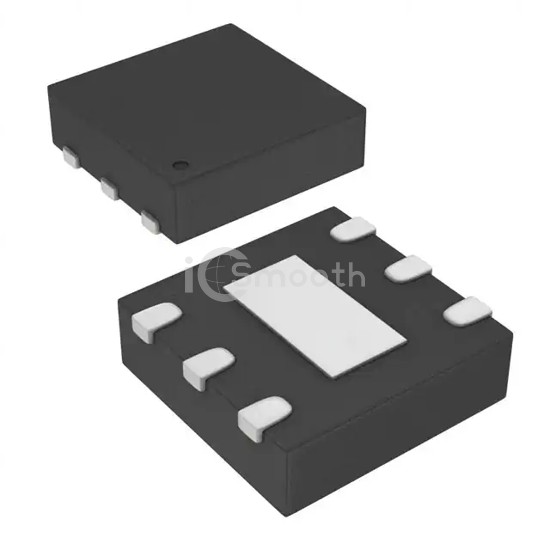

UCC27512MDRSTEP - Texas Instruments - PMIC - Gate Drivers
REF: UCC27512MDRSTEP Texas Instruments
UCC27512MDRSTEP

Texas Instruments

IC GATE DRVR LOW-SIDE 6SON

UCC27512MDRSTEP is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR LOW-SIDE 6SON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), voltage - supply 4.5V ~ 18V, package / case 6-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 8,020

Tiered Pricing USD
1+ $3.9900 —
10+ $3.0170 -24%
25+ $2.7736 -30%
100+ $2.5058 -37% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationLow-Side
Channel TypeSingle
Number of Drivers1
Gate TypeIGBT, N-Channel MOSFET
Voltage - Supply4.5V ~ 18V
Logic Voltage - VIL, VIH1V, 2.4V
Current - Peak Output (Source, Sink)4A, 8A
Input TypeInverting, Non-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)8ns, 7ns
Operating Temperature-55°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case6-WDFN Exposed Pad
Supplier Device Package6-SON (3x3)
