UCC27282QDRCTQ1

In Stock: 6,515

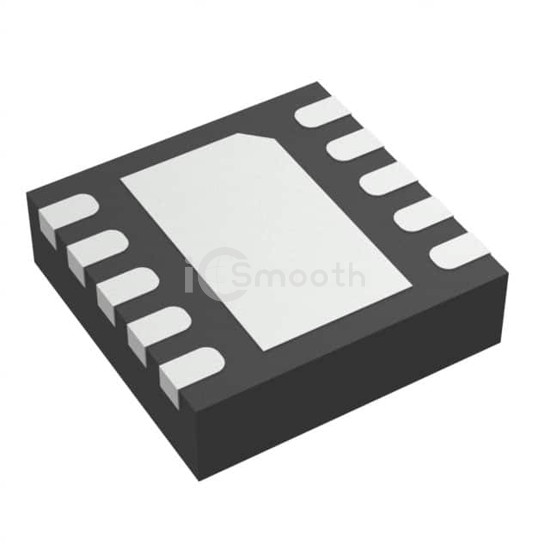

UCC27282QDRCTQ1 - Texas Instruments - PMIC - Gate Drivers
REF: UCC27282QDRCTQ1 Texas Instruments
UCC27282QDRCTQ1

Texas Instruments

120V LOW COST HS/LS DRIVER

UCC27282QDRCTQ1 is a PMIC - Gate Drivers manufactured by Texas Instruments. 120V LOW COST HS/LS DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 5.5V ~ 16V, package / case 10-VFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 6,515

Tiered Pricing USD
1+ $3.2900 —
10+ $2.4690 -25%
25+ $2.2636 -31%
100+ $2.0384 -38% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeSynchronous
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply5.5V ~ 16V
Logic Voltage - VIL, VIH1.3V, 1.9V
Current - Peak Output (Source, Sink)2.5A, 3.5A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)120 V
Rise / Fall Time (Typ)12ns, 10ns
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case10-VFDFN Exposed Pad
Supplier Device Package10-VSON (3x3)
