UCC27282QDRCRQ1

In Stock: 1,970

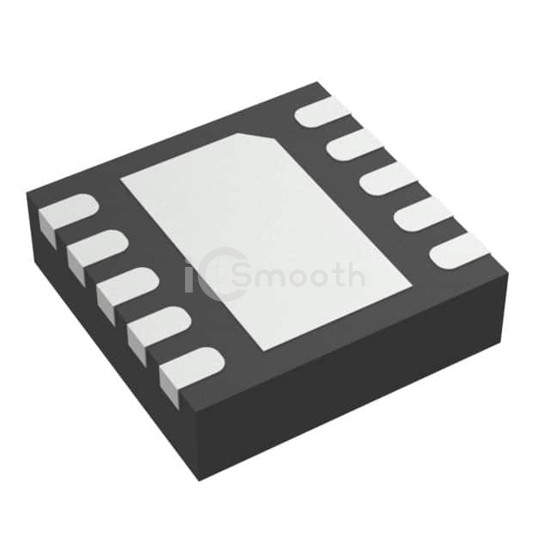

UCC27282QDRCRQ1 - Texas Instruments - PMIC - Gate Drivers
REF: UCC27282QDRCRQ1 Texas Instruments
UCC27282QDRCRQ1

Texas Instruments

AUTOMOTIVE 3-A, 120-V HALF BRIDG

UCC27282QDRCRQ1 is a PMIC - Gate Drivers manufactured by Texas Instruments. AUTOMOTIVE 3-A, 120-V HALF BRIDG. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 5.5V ~ 16V, package / case 10-VFDFN Exposed Pad.

Request a Quote

In Stock: 1,970

Tiered Pricing USD
1+ $3.0100 —
10+ $2.2500 -25%
25+ $2.0612 -32%
100+ $1.8533 -38%
250+ $1.7541 -42%
500+ $1.6943 -44%
1,000+ $1.6451 -45% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply5.5V ~ 16V
Logic Voltage - VIL, VIH1.3V, 1.9V
Current - Peak Output (Source, Sink)2.5A, 3.5A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)12ns, 10ns
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case10-VFDFN Exposed Pad
Supplier Device Package10-VSON (3x3)
