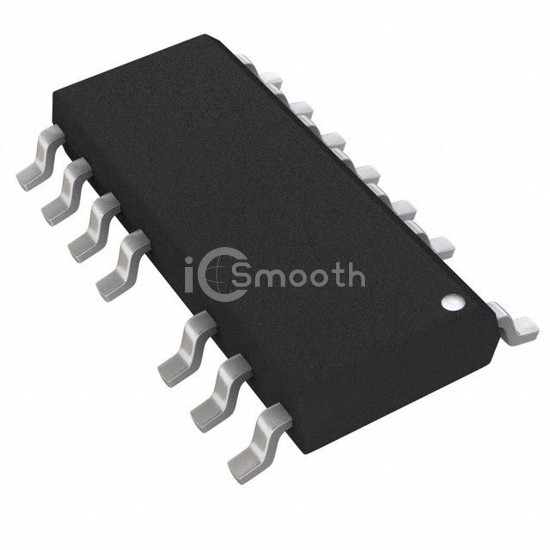

Name: UCC25630-4DDBT
Brand: Texas Instruments
SKU: UCC25630-4DDBT
Price: 4.93 USD
Availability: InStock

REF: UCC25630-4DDBT Texas Instruments

UCC25630-4DDBT

Texas Instruments

HALF BRIDGE CONT WITH HV DRIVER

UCC25630-4DDBT is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. HALF BRIDGE CONT WITH HV DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 13V ~ 26V, package / case 16-SOIC (0.154", 3.90mm Width), 14 Leads.

Datasheet Request a Quote

In Stock: 4,771

Tiered Pricing USD

1+ $4.9300 —

10+ $3.7550 -24%

25+ $3.4612 -30%

100+ $3.1382 -36% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	-
Output Configuration	Positive, Isolation Capable
Topology	Half-Bridge
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	13V ~ 26V
Frequency - Switching	35kHz ~ 1MHz

Duty Cycle (Max)	50%
Synchronous Rectifier	No
Clock Sync	No
Serial Interfaces	-
Control Features	Hybrid Hysteretic Control (HHC)
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.154", 3.90mm Width), 14 Leads
Supplier Device Package	14-SOIC
