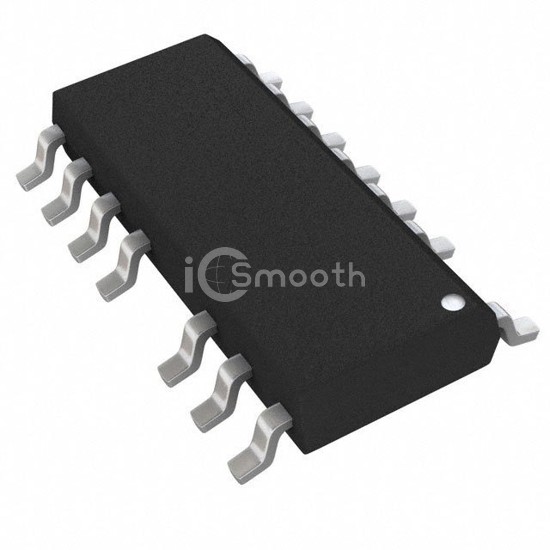

Name: UCC25630-3DDBR
Brand: Texas Instruments
SKU: UCC25630-3DDBR
Price: 4.17 USD
Availability: InStock

REF: UCC25630-3DDBR Texas Instruments

UCC25630-3DDBR

Texas Instruments

UCC25630-3DDBR

UCC25630-3DDBR is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. UCC25630-3DDBR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 11.25V ~ 26V, package / case 16-SOIC (0.154", 3.90mm Width), 14 Leads.

Datasheet Request a Quote

In Stock: 1,994

Tiered Pricing USD

1+ $4.1700 —

10+ $3.1590 -24%

25+ $2.9060 -30%

100+ $2.6274 -37%

250+ $2.4945 -40%

500+ $2.4144 -42%

1,000+ $2.3485 -44% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	-
Output Configuration	Positive, Isolation Capable
Topology	Half-Bridge
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	11.25V ~ 26V
Frequency - Switching	35kHz ~ 1MHz

Duty Cycle (Max)	50%
Synchronous Rectifier	No
Clock Sync	No
Serial Interfaces	-
Control Features	Hybrid Hysteretic Control (HHC)
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.154", 3.90mm Width), 14 Leads
Supplier Device Package	14-SOIC
