UCC23511DWYR

In Stock: 790

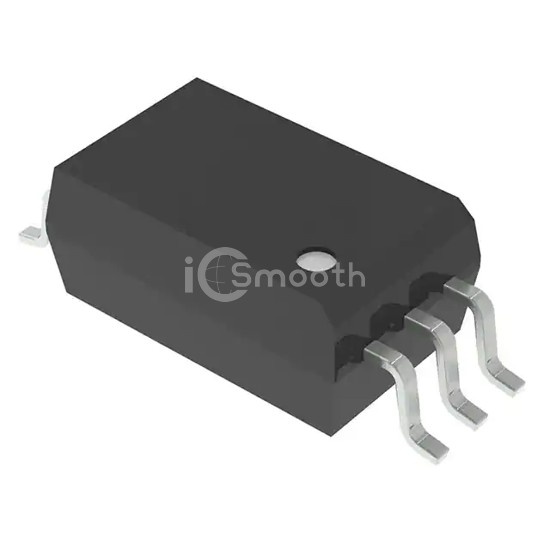

UCC23511DWYR - Texas Instruments - Isolators - Gate Drivers
REF: UCC23511DWYR Texas Instruments
UCC23511DWYR

Texas Instruments

1A- SGNL CHAN ISO GD WITH OPTO 5

UCC23511DWYR is a Isolators - Gate Drivers manufactured by Texas Instruments. 1A- SGNL CHAN ISO GD WITH OPTO 5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - forward (vf) (typ) 2.1V, package / case 6-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 790

Tiered Pricing USD
1+ $1.0200 —
10+ $0.7370 -28%
25+ $0.6656 -35%
100+ $0.5867 -42%
250+ $0.5491 -46% BEST

Specifications

18 parameters
Product StatusActive
TechnologyCapacitive Coupling
Number of Channels1
Voltage - Isolation5700Vrms
Common Mode Transient Immunity (Min)150kV/µs
Propagation Delay tpLH / tpHL (Max)105ns, 105ns
Pulse Width Distortion (Max)35ns
Rise / Fall Time (Typ)28ns, 25ns
Current - Output High, Low1.5A, 2A
Current - Peak Output2A, 1.5A
Voltage - Forward (Vf) (Typ)2.1V
Current - DC Forward (If) (Max)16 mA
Voltage - Output Supply14V ~ 33V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.295", 7.50mm Width)
Supplier Device Package6-SOIC
Approval AgencyCQC, UL, VDE
