Name: UCC23313DWYR
Brand: Texas Instruments
SKU: UCC23313DWYR
Price: 0.78 USD
Availability: InStock

REF: UCC23313DWYR Texas Instruments

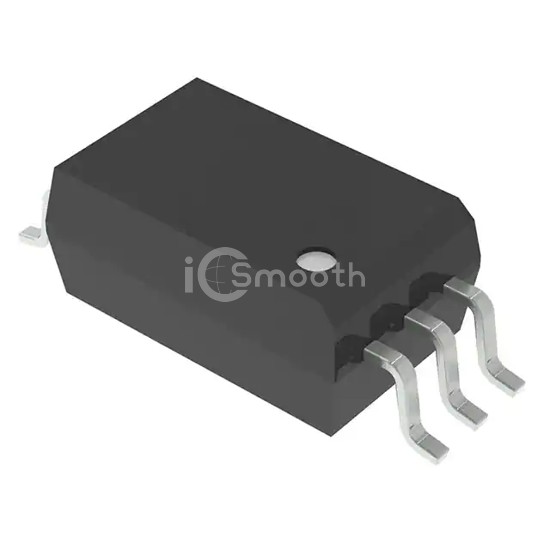

UCC23313DWYR

IC POWER MANAGEMENT

UCC23313DWYR is a Isolators - Gate Drivers manufactured by Texas Instruments. IC POWER MANAGEMENT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - forward (vf) (typ) 2.1V, package / case 6-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 1,769

Tiered Pricing USD

1+ $0.7800 —

10+ $0.5560 -29%

25+ $0.4996 -36%

100+ $0.4381 -44%

250+ $0.4087 -48% BEST

Specifications

18 parameters

Product Status	Active
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	3750Vrms
Common Mode Transient Immunity (Min)	150kV/µs
Propagation Delay tpLH / tpHL (Max)	105ns, 105ns
Pulse Width Distortion (Max)	35ns
Rise / Fall Time (Typ)	28ns, 25ns (Max)
Current - Output High, Low	4.5A, 5.3A

Current - Peak Output	4.5A, 5.3A
Voltage - Forward (Vf) (Typ)	2.1V
Current - DC Forward (If) (Max)	16 mA
Voltage - Output Supply	14V ~ 33V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.295", 7.50mm Width)
Supplier Device Package	6-SOIC
Approval Agency	CQC, UL, VDE
