Name: UCC23313DWY
Brand: Texas Instruments
SKU: UCC23313DWY
Price: 2.51 USD
Availability: InStock

REF: UCC23313DWY Texas Instruments

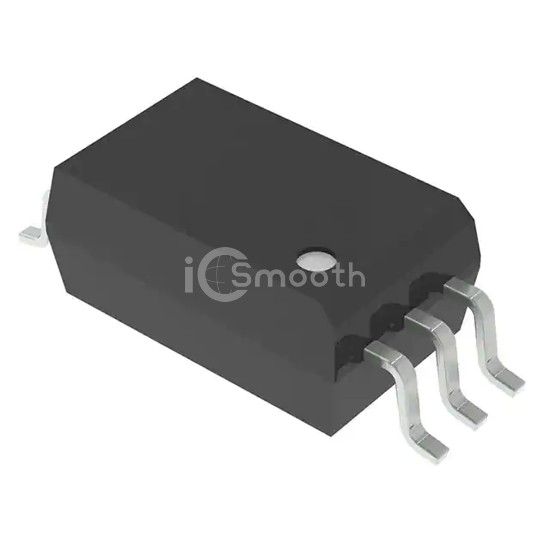

UCC23313DWY

IC POWER MANAGEMENT

UCC23313DWY is a Isolators - Gate Drivers manufactured by Texas Instruments. IC POWER MANAGEMENT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - forward (vf) (typ) 2.1V, package / case 6-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 5,411

Tiered Pricing USD

1+ $2.5100 —

10+ $1.8640 -26%

25+ $1.7036 -32%

100+ $1.5266 -39%

300+ $1.4280 -43%

500+ $1.3915 -45%

1,000+ $1.3497 -46% BEST

Specifications

18 parameters

Product Status	Active
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	3750Vrms
Common Mode Transient Immunity (Min)	150kV/µs
Propagation Delay tpLH / tpHL (Max)	105ns, 105ns
Pulse Width Distortion (Max)	35ns
Rise / Fall Time (Typ)	28ns, 25ns (Max)
Current - Output High, Low	4.5A, 5.3A

Current - Peak Output	4.5A, 5.3A
Voltage - Forward (Vf) (Typ)	2.1V
Current - DC Forward (If) (Max)	16 mA
Voltage - Output Supply	14V ~ 33V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.295", 7.50mm Width)
Supplier Device Package	6-SOIC
Approval Agency	CQC, UL, VDE
