Name: UCC21542DWR
Brand: Texas Instruments
SKU: UCC21542DWR
Price: 2.55 USD
Availability: InStock

REF: UCC21542DWR Texas Instruments

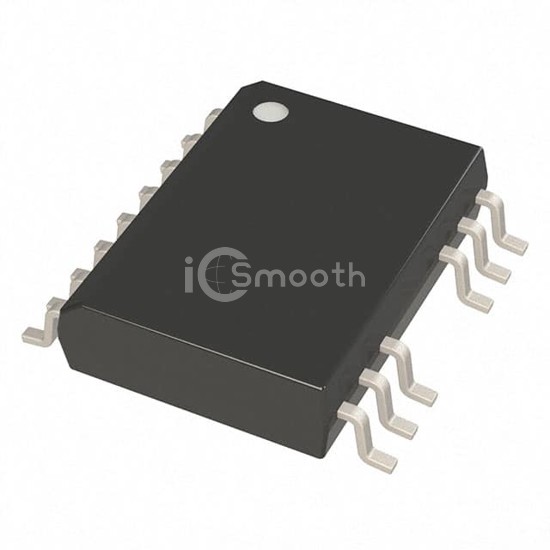

UCC21542DWR

REINFORCED ISOLATION DUAL-CHANNE

UCC21542DWR is a Isolators - Gate Drivers manufactured by Texas Instruments. REINFORCED ISOLATION DUAL-CHANNE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-SOIC (0.295", 7.50mm Width), approval agency CQC, UL, VDE.

Datasheet Request a Quote

In Stock: 6,220

Tiered Pricing USD

1+ $2.5500 —

10+ $1.9010 -25%

25+ $1.7372 -32%

100+ $1.5573 -39%

250+ $1.4716 -42%

500+ $1.4199 -44%

1,000+ $1.3774 -46% BEST

Specifications

18 parameters

Product Status	Active
Technology	Capacitive Coupling
Number of Channels	2
Voltage - Isolation	1.5kVrms
Common Mode Transient Immunity (Min)	100V/ns
Propagation Delay tpLH / tpHL (Max)	40ns, 40ns
Pulse Width Distortion (Max)	5.5ns
Rise / Fall Time (Typ)	5ns, 6ns
Current - Output High, Low	4A, 6A

Current - Peak Output	4A
Voltage - Forward (Vf) (Typ)	-
Current - DC Forward (If) (Max)	-
Voltage - Output Supply	9.2V ~ 18V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	14-SOIC (0.295", 7.50mm Width)
Supplier Device Package	14-SOIC
Approval Agency	CQC, UL, VDE
