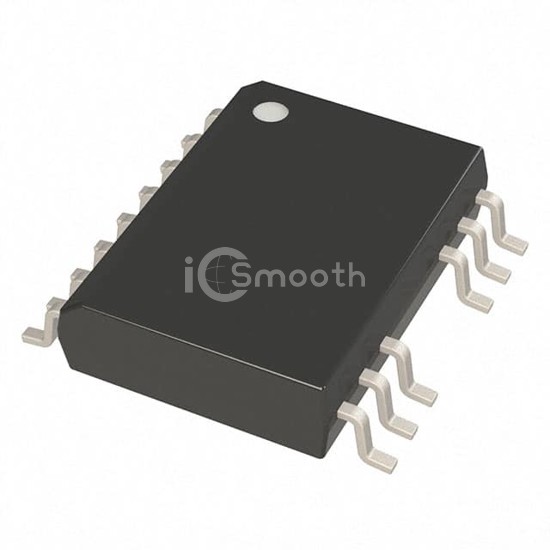

Name: UCC21542DWKR
Brand: Texas Instruments
SKU: UCC21542DWKR
Price: 3.35 USD
Availability: InStock

REF: UCC21542DWKR Texas Instruments

UCC21542DWKR

REINFORCED ISOLATION DUAL-CHANNE

UCC21542DWKR is a Isolators - Gate Drivers manufactured by Texas Instruments. REINFORCED ISOLATION DUAL-CHANNE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-SOIC (0.295", 7.50mm Width), approval agency CQC, UL, VDE.

Datasheet Request a Quote

In Stock: 7,381

Tiered Pricing USD

1+ $3.3500 —

10+ $2.5170 -25%

25+ $2.3088 -31%

100+ $2.0795 -38%

250+ $1.9703 -41%

500+ $1.9044 -43%

1,000+ $1.8503 -45% BEST

Specifications

18 parameters

Product Status	Active
Technology	Capacitive Coupling
Number of Channels	2
Voltage - Isolation	1.85kVrms
Common Mode Transient Immunity (Min)	100V/ns
Propagation Delay tpLH / tpHL (Max)	40ns, 40ns
Pulse Width Distortion (Max)	5.5ns
Rise / Fall Time (Typ)	5ns, 6ns
Current - Output High, Low	4A, 6A

Current - Peak Output	4A
Voltage - Forward (Vf) (Typ)	-
Current - DC Forward (If) (Max)	-
Voltage - Output Supply	9.2V ~ 18V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	14-SOIC (0.295", 7.50mm Width)
Supplier Device Package	14-SOIC
Approval Agency	CQC, UL, VDE
