UCC21542ADWKR

In Stock: 4,136

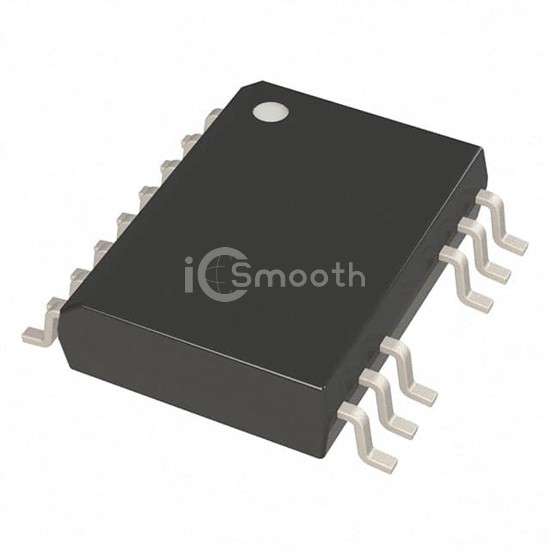

UCC21542ADWKR - Texas Instruments - Isolators - Gate Drivers
REF: UCC21542ADWKR Texas Instruments
UCC21542ADWKR

Texas Instruments

REINFORCED ISOLATION DUAL-CHANNE

UCC21542ADWKR is a Isolators - Gate Drivers manufactured by Texas Instruments. REINFORCED ISOLATION DUAL-CHANNE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-SOIC (0.295", 7.50mm Width), approval agency CQC, UL, VDE.

Datasheet Request a Quote

In Stock: 4,136

Tiered Pricing USD
1+ $4.1500 —
10+ $3.1400 -24%
25+ $2.8880 -30%
100+ $2.6109 -37%
250+ $2.4787 -40%
500+ $2.3991 -42%
1,000+ $2.3335 -44% BEST

Specifications

18 parameters
Product StatusActive
TechnologyCapacitive Coupling
Number of Channels2
Voltage - Isolation1.85kVrms
Common Mode Transient Immunity (Min)100V/ns
Propagation Delay tpLH / tpHL (Max)40ns, 40ns
Pulse Width Distortion (Max)5.5ns
Rise / Fall Time (Typ)5ns, 6ns
Current - Output High, Low4A, 6A
Current - Peak Output4A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply6V ~ 18V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case14-SOIC (0.295", 7.50mm Width)
Supplier Device Package14-SOIC
Approval AgencyCQC, UL, VDE
