UCC21540QDWKRQ1

In Stock: 7,477

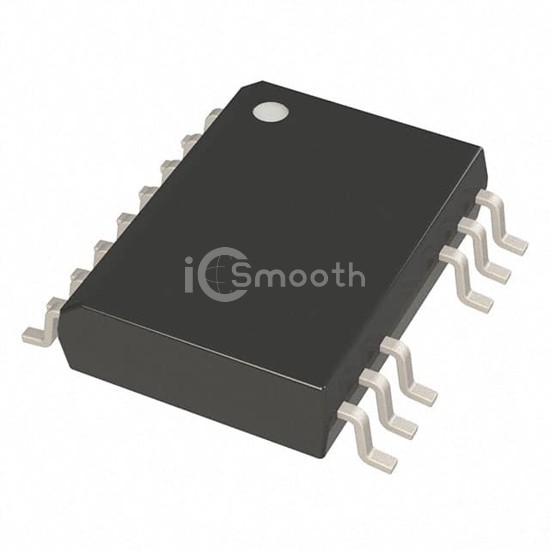

UCC21540QDWKRQ1 - Texas Instruments - Isolators - Gate Drivers
REF: UCC21540QDWKRQ1 Texas Instruments
UCC21540QDWKRQ1

Texas Instruments

REINFORCED ISOLATED DUAL-CHANNEL

UCC21540QDWKRQ1 is a Isolators - Gate Drivers manufactured by Texas Instruments. REINFORCED ISOLATED DUAL-CHANNEL. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-SOIC (0.295", 7.50mm Width), approval agency CQC, UL, VDE.

Request a Quote

In Stock: 7,477

Tiered Pricing USD
1+ $7.4800 —
10+ $5.7800 -23%
25+ $5.3544 -28%
100+ $4.8868 -35%
250+ $4.6639 -38%
500+ $4.5296 -39%
1,000+ $4.4190 -41% BEST

Specifications

18 parameters
Product StatusActive
TechnologyCapacitive Coupling
Number of Channels2
Voltage - Isolation5700Vrms
Common Mode Transient Immunity (Min)100V/ns
Propagation Delay tpLH / tpHL (Max)40ns, 40ns
Pulse Width Distortion (Max)5.5ns
Rise / Fall Time (Typ)5ns, 6ns
Current - Output High, Low4A, 6A
Current - Peak Output4A, 6A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply9.2V ~ 18V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case14-SOIC (0.295", 7.50mm Width)
Supplier Device Package14-SOIC
Approval AgencyCQC, UL, VDE
