UCC21530DWK

In Stock: 5,217
UCC21530DWK - Texas Instruments - PMIC - Gate Drivers
REF: UCC21530DWK Texas Instruments
UCC21530DWK

Texas Instruments

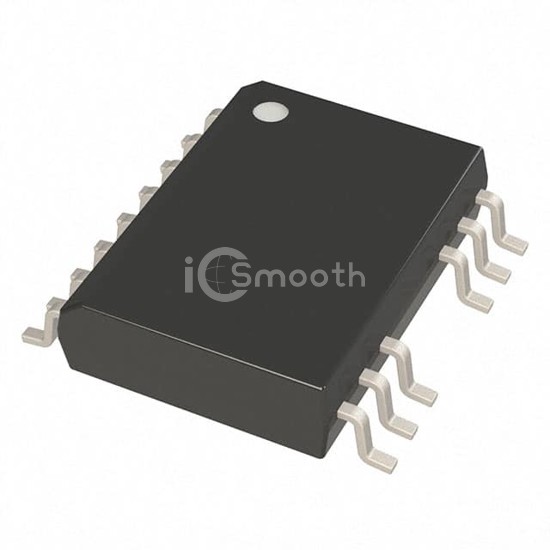

IC GATE DRVR ISOLATED

UCC21530DWK is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR ISOLATED. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C (TJ), voltage - supply 3V ~ 18V, package / case 14-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 5,217

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeIGBT, N-Channel, P-Channel MOSFET
Voltage - Supply3V ~ 18V
Logic Voltage - VIL, VIH1.2V, 1.6V
Current - Peak Output (Source, Sink)4A, 6A
Input TypeCMOS/TTL
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)6ns, 7ns
Operating Temperature-40°C ~ 130°C (TJ)
Mounting TypeSurface Mount
Package / Case14-SOIC (0.295", 7.50mm Width)
Supplier Device Package14-SOIC
