UCC21530BQDWKQ1

In Stock: 4,514
UCC21530BQDWKQ1 - Texas Instruments - Isolators - Gate Drivers
REF: UCC21530BQDWKQ1 Texas Instruments
UCC21530BQDWKQ1

Texas Instruments

IC ISOLATION

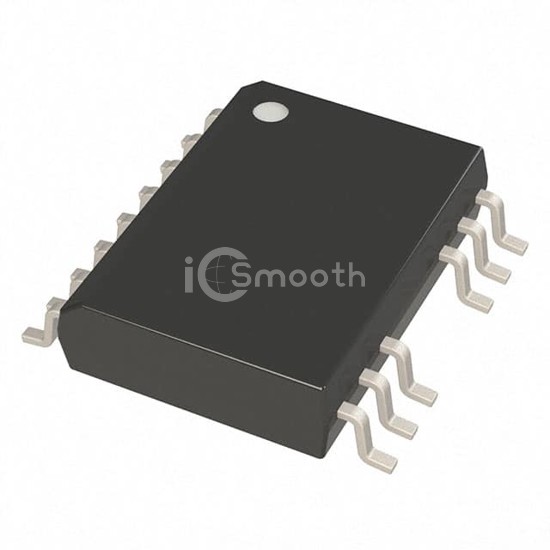

UCC21530BQDWKQ1 is a Isolators - Gate Drivers manufactured by Texas Instruments. IC ISOLATION. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-SOIC (0.295", 7.50mm Width), approval agency CQC, CSA, UL, VDE.

Request a Quote

In Stock: 4,514

Specifications

18 parameters
Product StatusActive
TechnologyCapacitive Coupling
Number of Channels2
Voltage - Isolation5700Vrms
Common Mode Transient Immunity (Min)100V/ns
Propagation Delay tpLH / tpHL (Max)30ns, 30ns
Pulse Width Distortion (Max)6ns
Rise / Fall Time (Typ)6ns, 7ns
Current - Output High, Low4A, 6A
Current - Peak Output4A, 6A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply14.7V ~ 25V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case14-SOIC (0.295", 7.50mm Width)
Supplier Device Package14-SOIC
Approval AgencyCQC, CSA, UL, VDE
