UCC21320QDWKRQ1

In Stock: 6,853

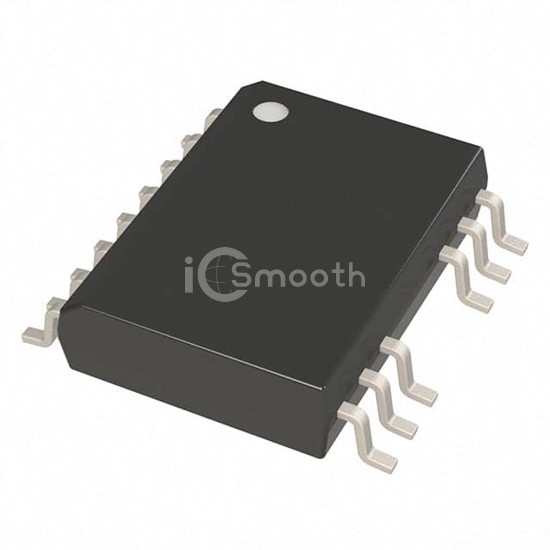

UCC21320QDWKRQ1 - Texas Instruments - Isolators - Gate Drivers
REF: UCC21320QDWKRQ1 Texas Instruments
UCC21320QDWKRQ1

Texas Instruments

4A/6A 3KVRMS DUAL CH ISO DR 8V U

UCC21320QDWKRQ1 is a Isolators - Gate Drivers manufactured by Texas Instruments. 4A/6A 3KVRMS DUAL CH ISO DR 8V U. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-SOIC (0.295", 7.50mm Width), approval agency CQC, UL, VDE.

Request a Quote

In Stock: 6,853

Tiered Pricing USD
1+ $5.5100 —
10+ $4.2110 -24%
25+ $3.8868 -29%
100+ $3.5303 -36%
250+ $3.3603 -39%
500+ $3.2578 -41%
1,000+ $3.1735 -42% BEST

Specifications

18 parameters
Product StatusActive
TechnologyCapacitive Coupling
Number of Channels2
Voltage - Isolation3750Vrms
Common Mode Transient Immunity (Min)100V/ns
Propagation Delay tpLH / tpHL (Max)30ns, 30ns
Pulse Width Distortion (Max)6ns
Rise / Fall Time (Typ)6ns, 7ns
Current - Output High, Low4A, 6A
Current - Peak Output4A, 6A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply9.2V ~ 25V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case14-SOIC (0.295", 7.50mm Width)
Supplier Device Package14-SOIC
Approval AgencyCQC, UL, VDE
