UCC21320QDWKQ1

In Stock: 2,714

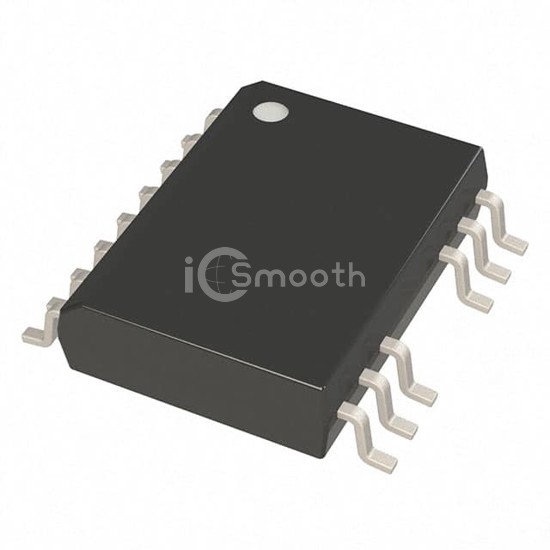

UCC21320QDWKQ1 - Texas Instruments - Isolators - Gate Drivers
REF: UCC21320QDWKQ1 Texas Instruments
UCC21320QDWKQ1

Texas Instruments

4A/6A 3KVRMS DUAL CH ISO DR 8V U

UCC21320QDWKQ1 is a Isolators - Gate Drivers manufactured by Texas Instruments. 4A/6A 3KVRMS DUAL CH ISO DR 8V U. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-SOIC (0.295", 7.50mm Width), approval agency CQC, UL, VDE.

Request a Quote

In Stock: 2,714

Tiered Pricing USD
1+ $6.1400 —
10+ $4.7080 -23%
40+ $4.2013 -32%
120+ $3.9181 -36%
280+ $3.7522 -39% BEST

Specifications

18 parameters
Product StatusActive
TechnologyCapacitive Coupling
Number of Channels2
Voltage - Isolation3750Vrms
Common Mode Transient Immunity (Min)100V/ns
Propagation Delay tpLH / tpHL (Max)30ns, 30ns
Pulse Width Distortion (Max)6ns
Rise / Fall Time (Typ)6ns, 7ns
Current - Output High, Low4A, 6A
Current - Peak Output4A, 6A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply9.2V ~ 25V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case14-SOIC (0.295", 7.50mm Width)
Supplier Device Package14-SOIC
Approval AgencyCQC, UL, VDE
