UCC21225ANPLT

In Stock: 1,105

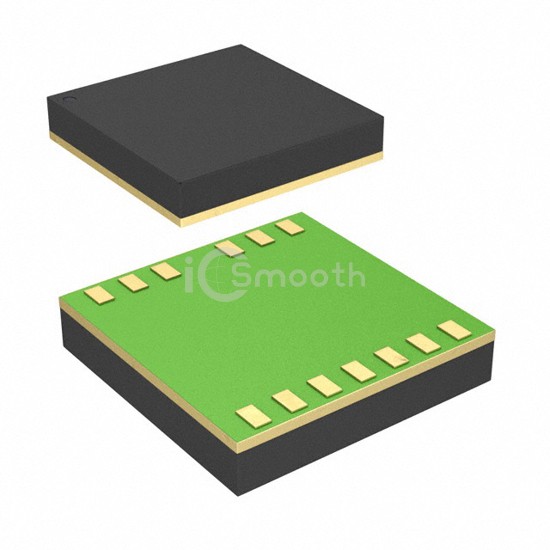

UCC21225ANPLT - Texas Instruments - Isolators - Gate Drivers
REF: UCC21225ANPLT Texas Instruments
UCC21225ANPLT

Texas Instruments

DGTL ISO 2.5KV GATE DRVR 13VLGA

UCC21225ANPLT is a Isolators - Gate Drivers manufactured by Texas Instruments. DGTL ISO 2.5KV GATE DRVR 13VLGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 13-VFLGA, approval agency CQC, CSA, UR, VDE.

Datasheet Request a Quote

In Stock: 1,105

Tiered Pricing USD
1+ $5.0100 —
10+ $3.8190 -24%
25+ $3.5212 -30% BEST

Specifications

18 parameters
Product StatusActive
TechnologyCapacitive Coupling
Number of Channels2
Voltage - Isolation2500Vrms
Common Mode Transient Immunity (Min)100V/ns
Propagation Delay tpLH / tpHL (Max)30ns, 30ns
Pulse Width Distortion (Max)6ns
Rise / Fall Time (Typ)6ns, 7ns
Current - Output High, Low4A, 6A
Current - Peak Output-
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply3V ~ 18V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case13-VFLGA
Supplier Device Package13-VLGA (5x5)
Approval AgencyCQC, CSA, UR, VDE
