UCC20225QNPLRQ1

In Stock: 4,015

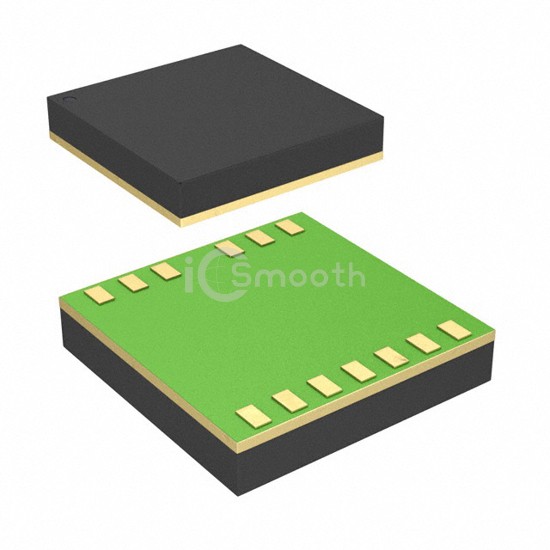

UCC20225QNPLRQ1 - Texas Instruments - Isolators - Gate Drivers
REF: UCC20225QNPLRQ1 Texas Instruments
UCC20225QNPLRQ1

Texas Instruments

PWR MGMT MOSFET/PWR DRIVER

UCC20225QNPLRQ1 is a Isolators - Gate Drivers manufactured by Texas Instruments. PWR MGMT MOSFET/PWR DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 13-VFLGA, approval agency CQC, UL, VDE.

Datasheet Request a Quote

In Stock: 4,015

Tiered Pricing USD
1+ $5.3600 —
10+ $4.0960 -24%
25+ $3.7792 -29%
100+ $3.4309 -36%
250+ $3.2650 -39%
500+ $3.1649 -41%
1,000+ $3.0825 -42% BEST

Specifications

18 parameters
Product StatusActive
TechnologyCapacitive Coupling
Number of Channels2
Voltage - Isolation2500Vrms
Common Mode Transient Immunity (Min)100V/ns
Propagation Delay tpLH / tpHL (Max)30ns, 30ns
Pulse Width Distortion (Max)6ns
Rise / Fall Time (Typ)6ns, 7ns
Current - Output High, Low4A, 6A
Current - Peak Output-
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply9.2V ~ 25V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case13-VFLGA
Supplier Device Package13-VLGA (5x5)
Approval AgencyCQC, UL, VDE
