Name: UCC20225NPLR
Brand: Texas Instruments
SKU: UCC20225NPLR
Price: 4.34 USD
Availability: InStock

REF: UCC20225NPLR Texas Instruments

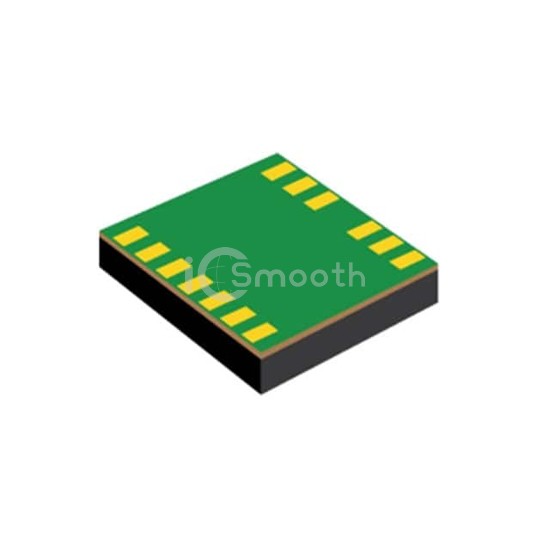

UCC20225NPLR

UCC20225NPLR is a Isolators - Gate Drivers manufactured by Texas Instruments. UCC20225NPLR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 13-VFLGA, approval agency CQC, CSA, UR, VDE.

Datasheet Request a Quote

In Stock: 8,201

Tiered Pricing USD

1+ $4.3400 —

10+ $3.2910 -24%

25+ $3.0284 -30%

100+ $2.7397 -37%

250+ $2.6021 -40%

500+ $2.5192 -42%

1,000+ $2.4509 -44% BEST

Specifications

18 parameters

Product Status	Active
Technology	Capacitive Coupling
Number of Channels	2
Voltage - Isolation	2500Vrms
Common Mode Transient Immunity (Min)	100V/ns
Propagation Delay tpLH / tpHL (Max)	30ns, 30ns
Pulse Width Distortion (Max)	6ns
Rise / Fall Time (Typ)	6ns, 7ns
Current - Output High, Low	4A, 6A

Current - Peak Output	-
Voltage - Forward (Vf) (Typ)	-
Current - DC Forward (If) (Max)	-
Voltage - Output Supply	3V ~ 18V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	13-VFLGA
Supplier Device Package	13-VLGA (5x5)
Approval Agency	CQC, CSA, UR, VDE
