UCC20225AQNPLTQ1

In Stock: 4,850

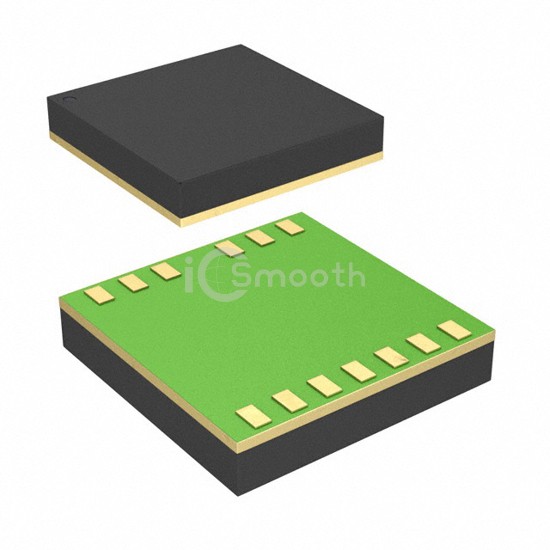

UCC20225AQNPLTQ1 - Texas Instruments - Isolators - Gate Drivers
REF: UCC20225AQNPLTQ1 Texas Instruments
UCC20225AQNPLTQ1

Texas Instruments

IC POWER MANAGEMENT

UCC20225AQNPLTQ1 is a Isolators - Gate Drivers manufactured by Texas Instruments. IC POWER MANAGEMENT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 13-VFLGA, approval agency CQC, UL, VDE.

Datasheet Request a Quote

In Stock: 4,850

Tiered Pricing USD
1+ $6.8900 —
10+ $5.3090 -23%
25+ $4.9136 -29%
100+ $4.4790 -35% BEST

Specifications

18 parameters
Product StatusActive
TechnologyCapacitive Coupling
Number of Channels2
Voltage - Isolation2500Vrms
Common Mode Transient Immunity (Min)100V/ns
Propagation Delay tpLH / tpHL (Max)30ns, 30ns
Pulse Width Distortion (Max)6ns
Rise / Fall Time (Typ)6ns, 7ns
Current - Output High, Low4A, 6A
Current - Peak Output4A, 6A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply6.5V ~ 25V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case13-VFLGA
Supplier Device Package13-VLGA (5x5)
Approval AgencyCQC, UL, VDE
