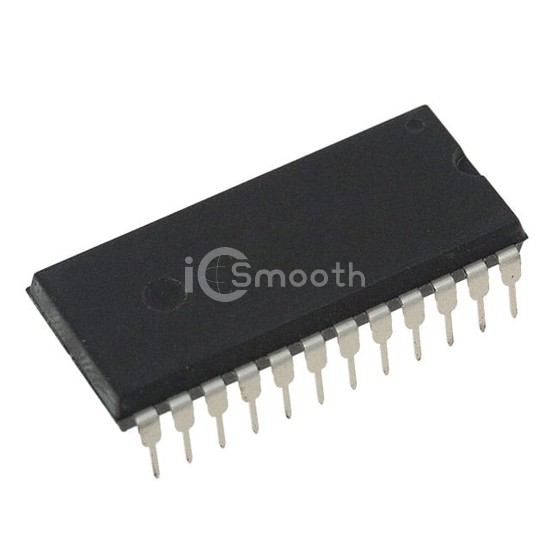

UC3827N-1

In Stock: 9,114
UC3827N-1 - Texas Instruments - PMIC - Voltage Regulators - DC DC Switching Controllers
REF: UC3827N-1 Texas Instruments
UC3827N-1

Texas Instruments

IC REG CTRLR MULT TOPOLOGY 24DIP

UC3827N-1 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR MULT TOPOLOGY 24DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C (TA), voltage - supply (vcc/vdd) 7.6V ~ 20V, package / case 24-DIP (0.600", 15.24mm).

Datasheet Request a Quote

In Stock: 9,114

Specifications

18 parameters
Product StatusObsolete
Output TypeTransistor Driver
FunctionStep-Down, Step-Up/Step-Down
Output ConfigurationPositive
TopologyBuck, Full-Bridge, Push-Pull
Number of Outputs3
Output Phases1
Voltage - Supply (Vcc/Vdd)7.6V ~ 20V
Frequency - Switching220kHz
Duty Cycle (Max)91%
Synchronous RectifierYes
Clock SyncYes
Serial Interfaces-
Control FeaturesFrequency Control, Ramp, Soft Start
Operating Temperature0°C ~ 70°C (TA)
Mounting TypeThrough Hole
Package / Case24-DIP (0.600", 15.24mm)
Supplier Device Package24-PDIP
