UC3709N

In Stock: 3,409
UC3709N - Texas Instruments - PMIC - Gate Drivers
REF: UC3709N Texas Instruments
UC3709N

Texas Instruments

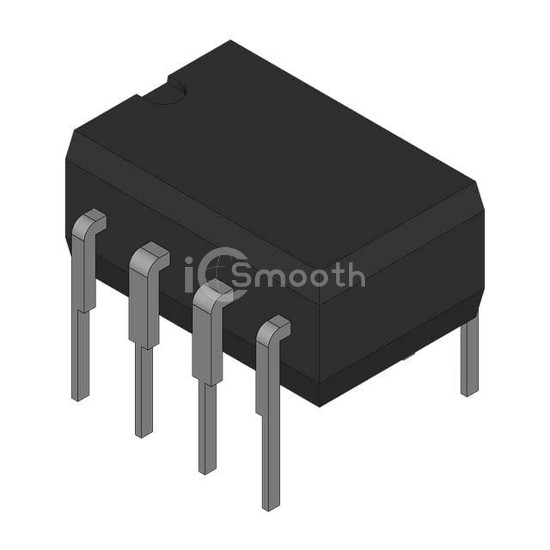

IC GATE DRVR LOW-SIDE 8DIP

UC3709N is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR LOW-SIDE 8DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TJ), voltage - supply 5V ~ 40V, package / case 8-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 3,409

Tiered Pricing USD
1+ $13.8200 —
10+ $10.8950 -21%
50+ $9.7248 -30%
100+ $9.3625 -32%
250+ $8.9801 -35%
500+ $8.7497 -37%
1,000+ $8.5600 -38% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationLow-Side
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel, P-Channel MOSFET
Voltage - Supply5V ~ 40V
Logic Voltage - VIL, VIH0.8V, 2.2V
Current - Peak Output (Source, Sink)1.5A, 1.5A
Input TypeInverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)20ns, 20ns
Operating Temperature-55°C ~ 125°C (TJ)
Mounting TypeThrough Hole
Package / Case8-DIP (0.300", 7.62mm)
Supplier Device Package8-PDIP
