TXB0104YZTR

In Stock: 5,040

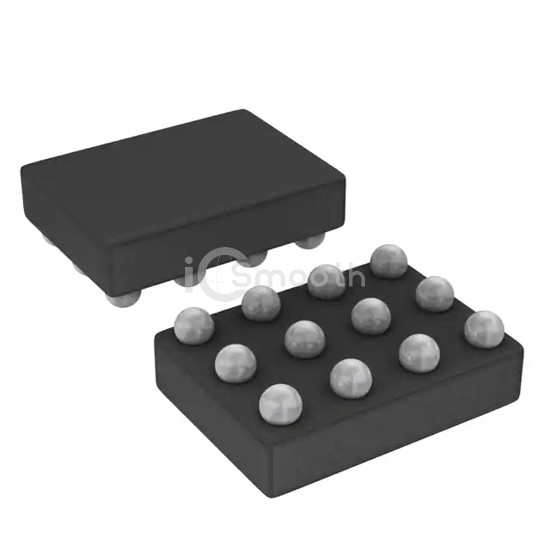

TXB0104YZTR - Texas Instruments - Logic - Translators, Level Shifters
REF: TXB0104YZTR Texas Instruments
TXB0104YZTR

Texas Instruments

IC TRNSLTR BIDIRECTIONAL 12DSBGA

TXB0104YZTR is a Logic - Translators, Level Shifters manufactured by Texas Instruments. IC TRNSLTR BIDIRECTIONAL 12DSBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 12-UFBGA, DSBGA, output type Tri-State, Non-Inverted.

Datasheet Request a Quote

In Stock: 5,040

Tiered Pricing USD
1+ $1.1800 —
10+ $0.8520 -28%
25+ $0.7704 -35%
100+ $0.6810 -42%
250+ $0.6383 -46%
500+ $0.6181 -48% BEST

Specifications

16 parameters
Product StatusActive
Translator TypeVoltage Level
Channel TypeBidirectional
Number of Circuits1
Channels per Circuit4
Voltage - VCCA1.2 V ~ 3.6 V
Voltage - VCCB1.65 V ~ 5.5 V
Input Signal-
Output Signal-
Output TypeTri-State, Non-Inverted
Data Rate100Mbps
Operating Temperature-40°C ~ 85°C (TA)
FeaturesAuto-Direction Sensing
Mounting TypeSurface Mount
Package / Case12-UFBGA, DSBGA
Supplier Device Package12-DSBGA (1.9x1.4)
