TXB0104RGYR

In Stock: 3,349

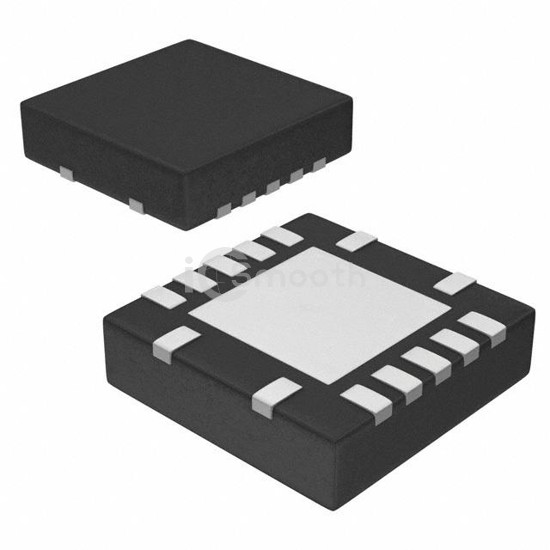

TXB0104RGYR - Texas Instruments - Logic - Translators, Level Shifters
REF: TXB0104RGYR Texas Instruments
TXB0104RGYR

Texas Instruments

IC TRNSLTR BIDIRECTIONAL 14VQFN

TXB0104RGYR is a Logic - Translators, Level Shifters manufactured by Texas Instruments. IC TRNSLTR BIDIRECTIONAL 14VQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 14-VFQFN Exposed Pad, output type Tri-State, Non-Inverted.

Datasheet Request a Quote

In Stock: 3,349

Tiered Pricing USD
1+ $1.1500 —
10+ $0.8310 -28%
25+ $0.7512 -35%
100+ $0.6635 -42%
250+ $0.6217 -46%
500+ $0.6013 -48% BEST

Specifications

16 parameters
Product StatusActive
Translator TypeVoltage Level
Channel TypeBidirectional
Number of Circuits1
Channels per Circuit4
Voltage - VCCA1.2 V ~ 3.6 V
Voltage - VCCB1.65 V ~ 5.5 V
Input Signal-
Output Signal-
Output TypeTri-State, Non-Inverted
Data Rate100Mbps
Operating Temperature-40°C ~ 85°C (TA)
FeaturesAuto-Direction Sensing
Mounting TypeSurface Mount
Package / Case14-VFQFN Exposed Pad
Supplier Device Package14-VQFN (3.5x3.5)
