TPS7A8701RTJR

In Stock: 7,795

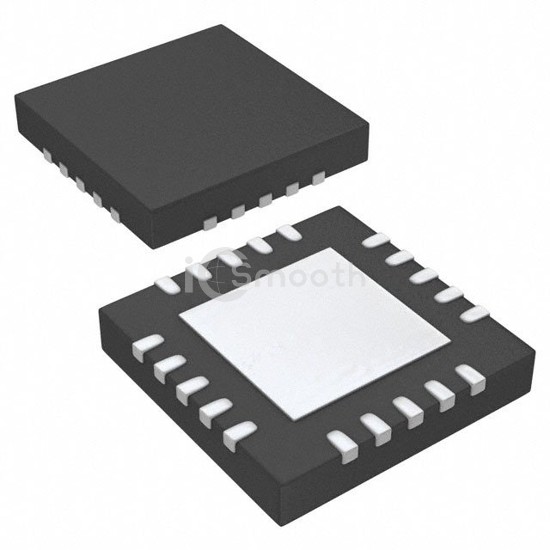

TPS7A8701RTJR - Texas Instruments - PMIC - Voltage Regulators - Linear
REF: TPS7A8701RTJR Texas Instruments
TPS7A8701RTJR

Texas Instruments

IC REG LIN POS ADJ 500MA 20QFN

TPS7A8701RTJR is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LIN POS ADJ 500MA 20QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 20-WFQFN Exposed Pad, current - supply (max) 4 mA.

Datasheet Request a Quote

In Stock: 7,795

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators2
Voltage - Input (Max)6.5V
Voltage - Output (Min/Fixed)0.8V
Voltage - Output (Max)5.2V
Voltage Dropout (Max)0.1V @ 500mA
Current - Output500mA
Current - Quiescent (Iq)-
Current - Supply (Max)4 mA
PSRR40dB (500kHz)
Control FeaturesEnable
Protection Features-
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case20-WFQFN Exposed Pad
Supplier Device Package20-QFN (4x4)
