TPS7A5301WQRTKRQ1

In Stock: 1,138

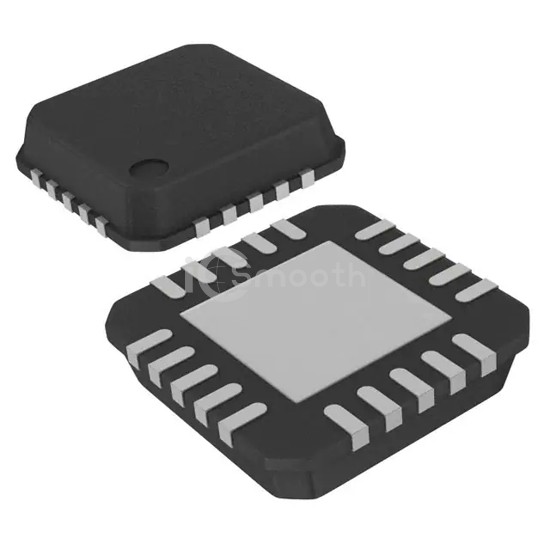

TPS7A5301WQRTKRQ1 - Texas Instruments - PMIC - Voltage Regulators - Linear
REF: TPS7A5301WQRTKRQ1 Texas Instruments
TPS7A5301WQRTKRQ1

Texas Instruments

IC REG LINEAR POS ADJ 3A 20QFN

TPS7A5301WQRTKRQ1 is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LINEAR POS ADJ 3A 20QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 20-VFQFN Exposed Pad, current - output 3A.

Datasheet Request a Quote

In Stock: 1,138

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)6.5V
Voltage - Output (Min/Fixed)0.8V
Voltage - Output (Max)5.15V
Voltage Dropout (Max)0.515V @ 3A
Current - Output3A
Current - Quiescent (Iq)-
Current - Supply (Max)-
PSRR42dB ~ 25dB (10kHz ~ 500kHz)
Control FeaturesEnable
Protection FeaturesOver Temperature, Reverse Polarity
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case20-VFQFN Exposed Pad
Supplier Device Package20-QFN (4x4)
