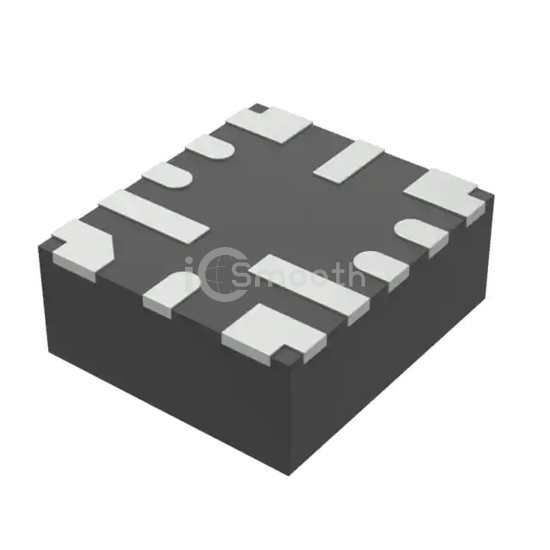

Name: TPS7A5301RPSR
Brand: Texas Instruments
SKU: TPS7A5301RPSR
Price: 3.52 USD
Availability: InStock

REF: TPS7A5301RPSR Texas Instruments

TPS7A5301RPSR

Texas Instruments

IC REG LINEAR POS ADJ 4A 12VQFN

TPS7A5301RPSR is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LINEAR POS ADJ 4A 12VQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 12-VFQFN, current - supply (max) 5.5 mA.

Request a Quote

In Stock: 6,353

Tiered Pricing USD

1+ $3.5200 —

10+ $2.6520 -25%

25+ $2.4336 -31%

100+ $2.1941 -38%

250+ $2.0799 -41%

500+ $2.0110 -43%

1,000+ $1.9543 -44% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	6.5V
Voltage - Output (Min/Fixed)	0.8V
Voltage - Output (Max)	5.15V
Voltage Dropout (Max)	0.375V @ 3A
Current - Output	4A

Current - Quiescent (Iq)	4 mA
Current - Supply (Max)	5.5 mA
PSRR	35dB ~ 44dB (10kHz ~ 500kHz)
Control Features	Enable, Power Good, Soft Start
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	12-VFQFN
Supplier Device Package	12-VQFN-HR (2.2x2.5)
