Name: TPS7A3901DSCT
Brand: Texas Instruments
SKU: TPS7A3901DSCT
Price: 6.35 USD
Availability: InStock

REF: TPS7A3901DSCT Texas Instruments

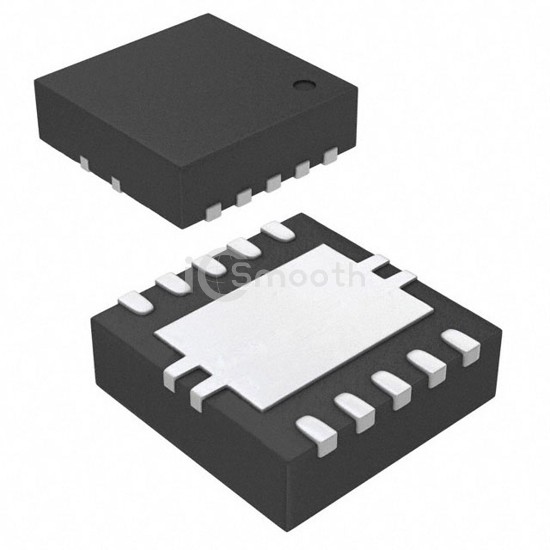

TPS7A3901DSCT

Texas Instruments

IC REG LINEAR POS/NEG ADJ 10WSON

TPS7A3901DSCT is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LINEAR POS/NEG ADJ 10WSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 10-WFDFN Exposed Pad, current - supply (max) 904 µA.

Datasheet Request a Quote

In Stock: 8,036

Tiered Pricing USD

1+ $6.3500 —

10+ $4.8810 -23%

25+ $4.5128 -29%

100+ $4.1082 -35% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive and Negative
Output Type	Adjustable
Number of Regulators	2
Voltage - Input (Max)	±33V
Voltage - Output (Min/Fixed)	1.2V, 0V
Voltage - Output (Max)	30V, -30V
Voltage Dropout (Max)	0.5V @ 150mA
Current - Output	150mA

Current - Quiescent (Iq)	150 µA
Current - Supply (Max)	904 µA
PSRR	69dB (120Hz)
Control Features	Current Limit, Enable, Soft Start
Protection Features	Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	10-WFDFN Exposed Pad
Supplier Device Package	10-WSON (3x3)
