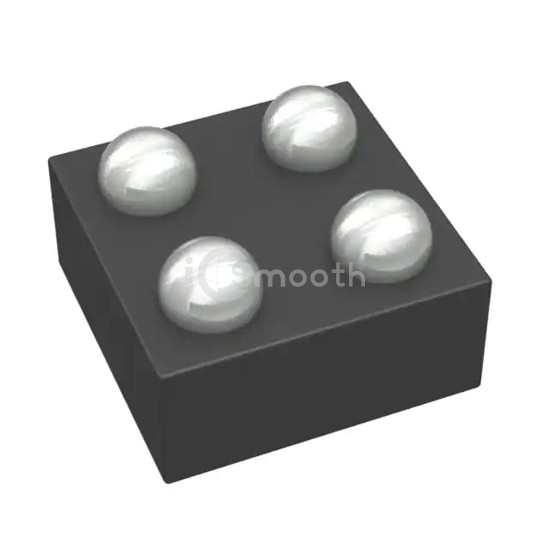

Name: TPS7A20285PYCKR
Brand: Texas Instruments
SKU: TPS7A20285PYCKR
Price: 0.35 USD
Availability: InStock

REF: TPS7A20285PYCKR Texas Instruments

TPS7A20285PYCKR

Texas Instruments

300-MA, ULTRA-LOW-NOISE, LOW-IQ,

TPS7A20285PYCKR is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. 300-MA, ULTRA-LOW-NOISE, LOW-IQ,. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 4-XFBGA, DSBGA, current - output 300mA.

Datasheet Request a Quote

In Stock: 5,408

Tiered Pricing USD

1+ $0.3500 —

10+ $0.2430 -31%

25+ $0.2164 -38%

100+ $0.1865 -47%

250+ $0.1724 -51%

500+ $0.1638 -53%

1,000+ $0.1568 -55%

2,500+ $0.1493 -57%

5,000+ $0.1448 -59% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	6V
Voltage - Output (Min/Fixed)	2.85V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.14V @ 300mA
Current - Output	300mA

Current - Quiescent (Iq)	15 µA
Current - Supply (Max)	-
PSRR	65dB ~ 40dB (100Hz ~ 1MHz)
Control Features	Enable, Soft Start
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-XFBGA, DSBGA
Supplier Device Package	4-DSBGA (0.6x0.6)
