Name: TPS7A2012PYCJR
Brand: Texas Instruments
SKU: TPS7A2012PYCJR
Price: 0.30 USD
Availability: InStock

REF: TPS7A2012PYCJR Texas Instruments

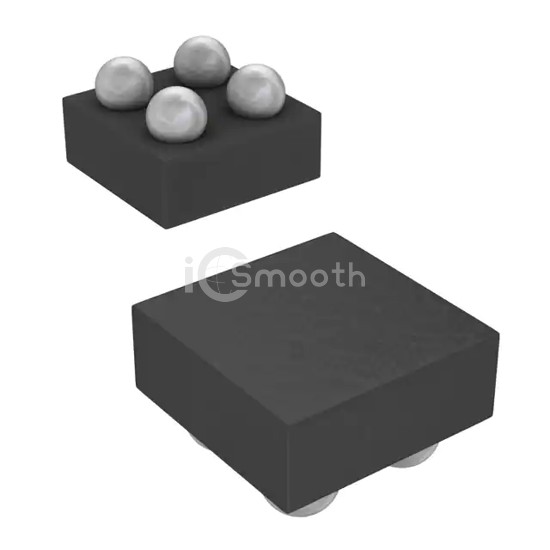

TPS7A2012PYCJR

Texas Instruments

300-MA, ULTRA-LOW-NOISE, LOW-IQ,

TPS7A2012PYCJR is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. 300-MA, ULTRA-LOW-NOISE, LOW-IQ,. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 4-XFBGA, DSBGA, current - output 300mA.

Datasheet Request a Quote

In Stock: 11,900

Tiered Pricing USD

1+ $0.3000 —

10+ $0.2070 -31%

25+ $0.1836 -39%

100+ $0.1579 -47%

250+ $0.1456 -51%

500+ $0.1382 -54%

1,000+ $0.1321 -56%

2,500+ $0.1256 -58%

5,000+ $0.1218 -59% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	6V
Voltage - Output (Min/Fixed)	1.2V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.355V @ 300mA
Current - Output	300mA

Current - Quiescent (Iq)	15 µA
Current - Supply (Max)	-
PSRR	65dB ~ 40dB (100Hz ~ 1MHz)
Control Features	Current Limit, Enable
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-XFBGA, DSBGA
Supplier Device Package	4-DSBGA (0.62x0.62)
