Name: TPS7A1509PYCKR
Brand: Texas Instruments
SKU: TPS7A1509PYCKR
Price: 0.72 USD
Availability: InStock

REF: TPS7A1509PYCKR Texas Instruments

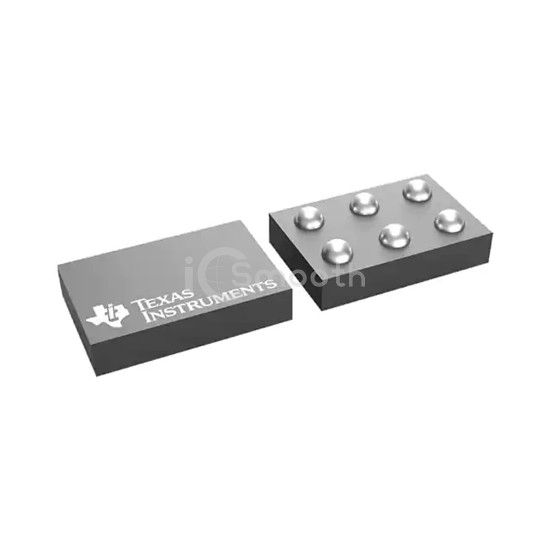

TPS7A1509PYCKR

Texas Instruments

400-MA, LOW INPUT AND OUTPUT VOL

TPS7A1509PYCKR is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. 400-MA, LOW INPUT AND OUTPUT VOL. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 6-XFBGA, DSBGA, current - supply (max) 500 µA.

Datasheet Request a Quote

In Stock: 8,415

Tiered Pricing USD

1+ $0.7200 —

10+ $0.5100 -29%

25+ $0.4576 -36%

100+ $0.4006 -44%

250+ $0.3734 -48%

500+ $0.3569 -50%

1,000+ $0.3434 -52%

2,500+ $0.3292 -54%

5,000+ $0.3206 -55% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	2.2V
Voltage - Output (Min/Fixed)	0.9V
Voltage - Output (Max)	-
Voltage Dropout (Max)	-
Current - Output	400mA

Current - Quiescent (Iq)	40 µA
Current - Supply (Max)	500 µA
PSRR	90dB ~ 23dB (100Hz ~ 1MHz)
Control Features	Current Limit, Enable
Protection Features	Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-XFBGA, DSBGA
Supplier Device Package	6-DSBGA (0.71x1)
