Name: TPS7A1309PYCKR
Brand: Texas Instruments
SKU: TPS7A1309PYCKR
Price: 0.67 USD
Availability: InStock

REF: TPS7A1309PYCKR Texas Instruments

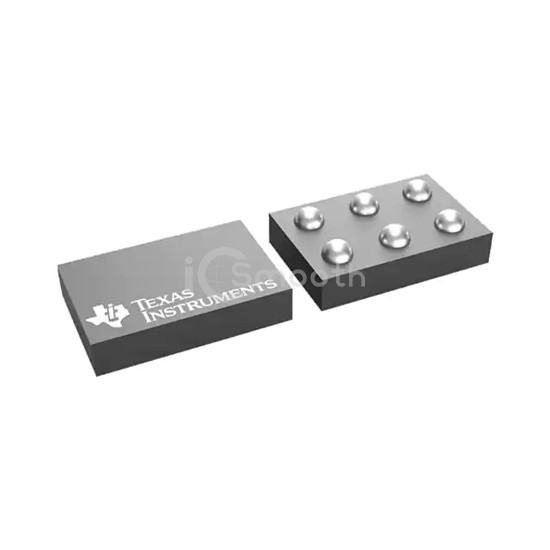

TPS7A1309PYCKR

Texas Instruments

300-MA, LOW INPUT AND OUTPUT VOL

TPS7A1309PYCKR is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. 300-MA, LOW INPUT AND OUTPUT VOL. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 6-XFBGA, DSBGA, current - supply (max) 500 µA.

Request a Quote

In Stock: 2,686

Tiered Pricing USD

1+ $0.6700 —

10+ $0.4750 -29%

25+ $0.4264 -36%

100+ $0.3727 -44%

250+ $0.3471 -48%

500+ $0.3317 -50%

1,000+ $0.3189 -52%

2,500+ $0.3055 -54%

5,000+ $0.2974 -56% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	2.2V
Voltage - Output (Min/Fixed)	0.9V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.065V @ 300mA
Current - Output	300mA

Current - Quiescent (Iq)	17 µA
Current - Supply (Max)	500 µA
PSRR	65dB ~ 26dB (1kHz ~ 1MHz)
Control Features	Current Limit, Enable
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-XFBGA, DSBGA
Supplier Device Package	6-DSBGA (0.67x0.96)
