Name: TPS78601DCQRG4
Brand: Texas Instruments
SKU: TPS78601DCQRG4
Availability: InStock

REF: TPS78601DCQRG4 Texas Instruments

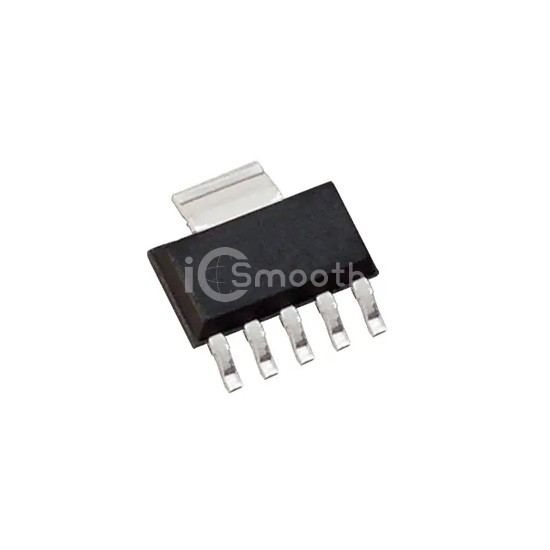

TPS78601DCQRG4

IC REG LIN POS ADJ 1.5A SOT223-6

TPS78601DCQRG4 is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LIN POS ADJ 1.5A SOT223-6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case SOT-223-6, current - output 1.5A.

Datasheet Request a Quote

In Stock: 4,698

Specifications

18 parameters

Product Status	Discontinued at Digi-Key
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.2V
Voltage - Output (Max)	5.5V
Voltage Dropout (Max)	0.47V @ 1.5A
Current - Output	1.5A

Current - Quiescent (Iq)	385 µA
Current - Supply (Max)	-
PSRR	59dB ~ 32dB (100Hz ~ 100kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	SOT-223-6
Supplier Device Package	SOT-223-6
