Name: TPS78601DCQR
Brand: Texas Instruments
SKU: TPS78601DCQR
Price: 2.70 USD
Availability: InStock

REF: TPS78601DCQR Texas Instruments

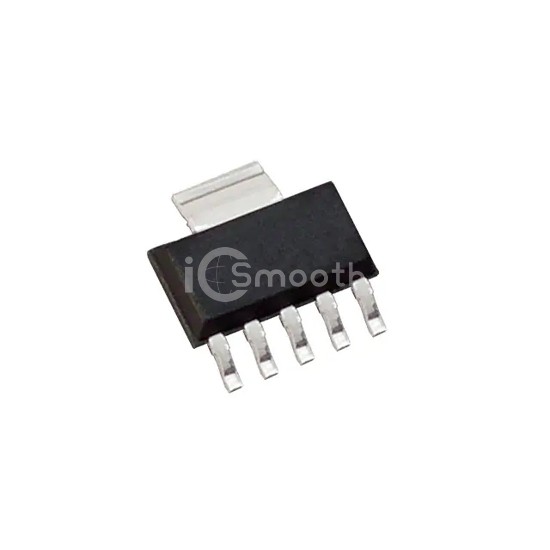

TPS78601DCQR

IC REG LIN POS ADJ 1.5A SOT223-6

TPS78601DCQR is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LIN POS ADJ 1.5A SOT223-6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case SOT-223-6, current - output 1.5A.

Datasheet Request a Quote

In Stock: 9,802

Tiered Pricing USD

1+ $2.7000 —

10+ $2.0110 -26%

25+ $1.8392 -32%

100+ $1.6506 -39%

250+ $1.5606 -42%

500+ $1.5063 -44%

1,000+ $1.4617 -46% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.2V
Voltage - Output (Max)	5.5V
Voltage Dropout (Max)	0.47V @ 1.5A
Current - Output	1.5A

Current - Quiescent (Iq)	385 µA
Current - Supply (Max)	-
PSRR	59dB ~ 32dB (100Hz ~ 100kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	SOT-223-6
Supplier Device Package	SOT-223-6
