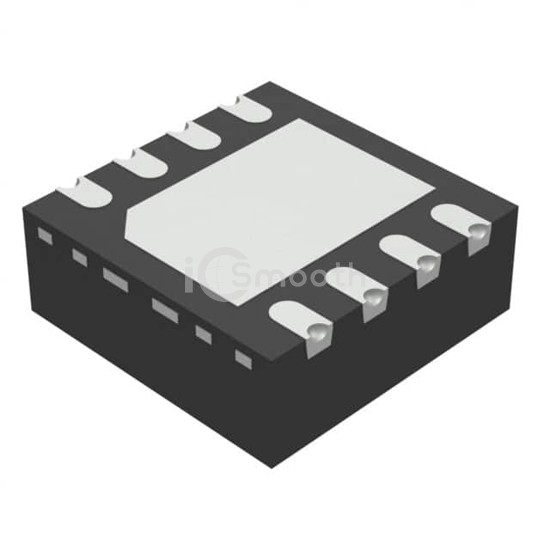

Name: TPS74601PQWDRBRQ1
Brand: Texas Instruments
SKU: TPS74601PQWDRBRQ1
Price: 1.16 USD
Availability: InStock

REF: TPS74601PQWDRBRQ1 Texas Instruments

TPS74601PQWDRBRQ1

Texas Instruments

IC REG LINEAR POS ADJ 1A 8SON

TPS74601PQWDRBRQ1 is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LINEAR POS ADJ 1A 8SON. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -40°C ~ 125°C (TA), package / case 8-VDFN Exposed Pad, current - output 1A.

Datasheet Request a Quote

In Stock: 7,578

Tiered Pricing USD

1+ $1.1600 —

10+ $0.8380 -28%

25+ $0.7580 -35%

100+ $0.6698 -42%

250+ $0.6277 -46%

500+ $0.6024 -48%

1,000+ $0.5815 -50% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	6V
Voltage - Output (Min/Fixed)	0.55V
Voltage - Output (Max)	5.5V
Voltage Dropout (Max)	1.09V @ 1A
Current - Output	1A

Current - Quiescent (Iq)	36 µA
Current - Supply (Max)	-
PSRR	53dB ~ 30dB (1kHz ~ 1MHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount, Wettable Flank
Package / Case	8-VDFN Exposed Pad
Supplier Device Package	8-SON (3x3)
