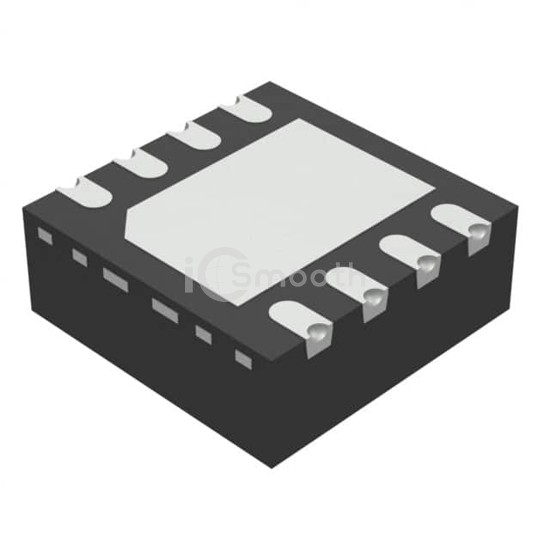

Name: TPS74501PQWDRBRQ1
Brand: Texas Instruments
SKU: TPS74501PQWDRBRQ1
Price: 1.47 USD
Availability: InStock

REF: TPS74501PQWDRBRQ1 Texas Instruments

TPS74501PQWDRBRQ1

Texas Instruments

IC REG LINEAR POS ADJ 500MA 8SON

TPS74501PQWDRBRQ1 is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LINEAR POS ADJ 500MA 8SON. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -40°C ~ 125°C (TA), package / case 8-VDFN Exposed Pad, current - output 500mA.

Datasheet Request a Quote

In Stock: 2,495

Tiered Pricing USD

1+ $1.4700 —

10+ $1.0740 -27%

25+ $0.9740 -34%

100+ $0.8645 -41%

250+ $0.8123 -45%

500+ $0.7808 -47%

1,000+ $0.7549 -49% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	6V
Voltage - Output (Min/Fixed)	0.55V
Voltage - Output (Max)	5.5V
Voltage Dropout (Max)	0.91V @ 500mA
Current - Output	500mA

Current - Quiescent (Iq)	36 µA
Current - Supply (Max)	-
PSRR	57dB ~ 35dB (1kHz ~ 1MHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount, Wettable Flank
Package / Case	8-VDFN Exposed Pad
Supplier Device Package	8-SON (3x3)
