Name: TPS73801DCQR
Brand: Texas Instruments
SKU: TPS73801DCQR
Price: 2.78 USD
Availability: InStock

REF: TPS73801DCQR Texas Instruments

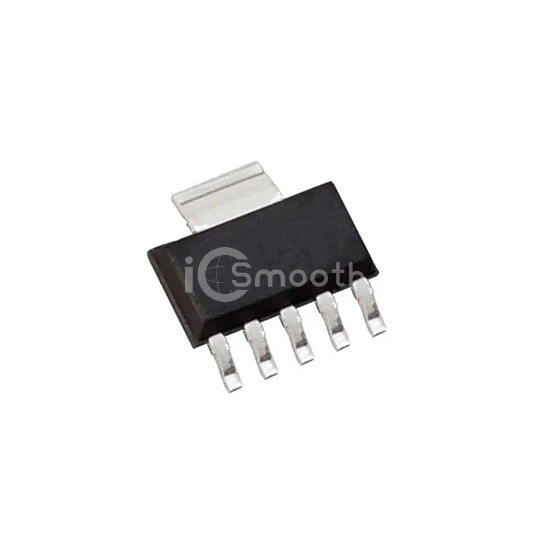

TPS73801DCQR

IC REG LINEAR POS ADJ 1A SOT223

TPS73801DCQR is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LINEAR POS ADJ 1A SOT223. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case SOT-223-6, current - supply (max) 80 mA.

Datasheet Request a Quote

In Stock: 2,383

Tiered Pricing USD

1+ $2.7800 —

10+ $2.0740 -25%

25+ $1.8980 -32%

100+ $1.7040 -39%

250+ $1.6116 -42%

500+ $1.5559 -44%

1,000+ $1.5100 -46% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	20V
Voltage - Output (Min/Fixed)	1.21V
Voltage - Output (Max)	20V
Voltage Dropout (Max)	0.5V @ 1A
Current - Output	1A

Current - Quiescent (Iq)	1.5 mA
Current - Supply (Max)	80 mA
PSRR	58dB ~ 37dB (100Hz ~ 10kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Reverse Polarity
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	SOT-223-6
Supplier Device Package	SOT-223-6
